RESPONSE

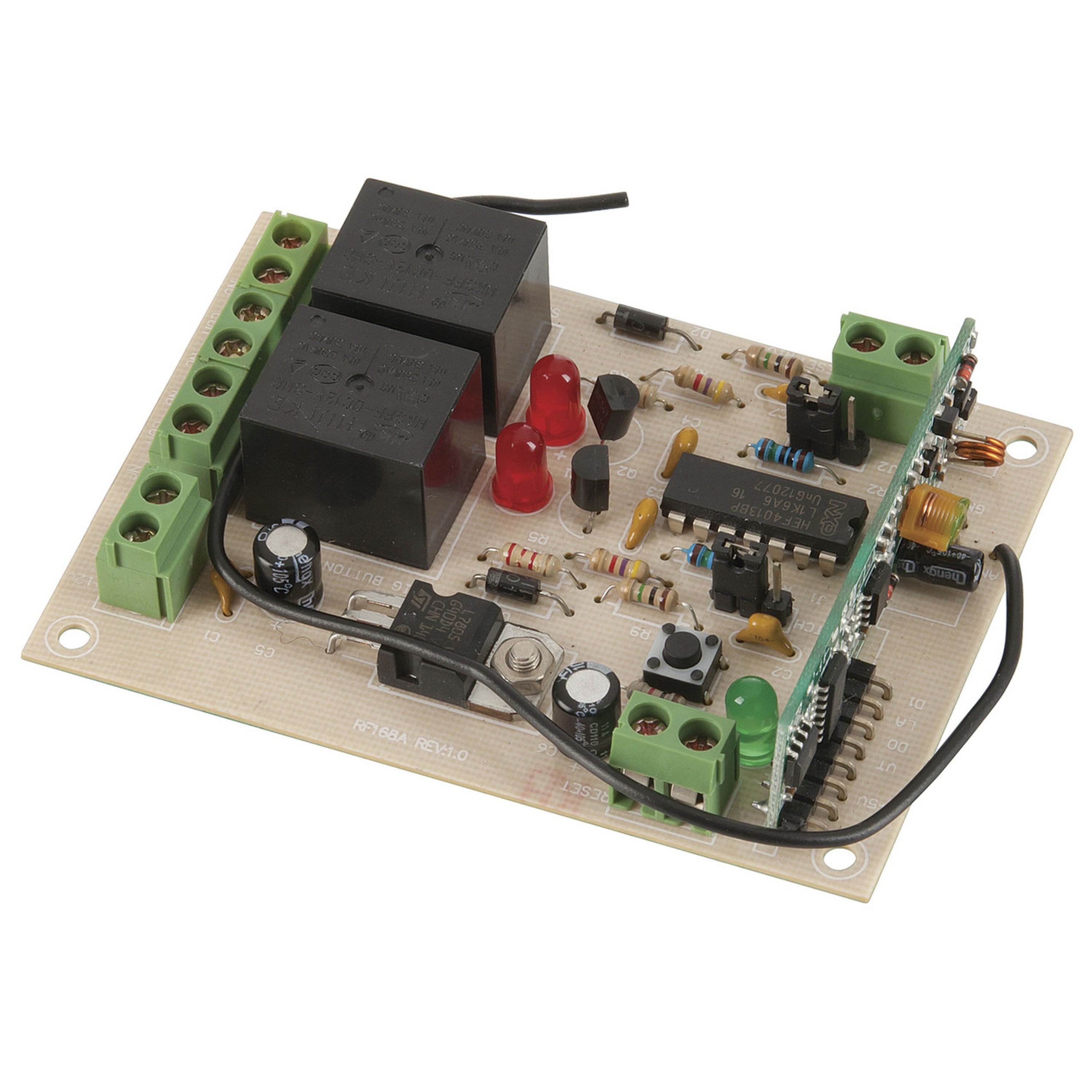

12 Volt Two Way Remote Control Relay Controller Board
- Cat No:
- LR8855
In Stock
$59.95
Description
Add remote control functions to a new project or existing installation with these handy remote control relay boards. Each output relay is controlled by a separate button on the key fob controller. Each channel can be set to momentary or latching mode allowing you to customise the setup to suit your application. Operating on the robust 433MHz band the key fob remotes work over distances up to 40m and feature rolling code transmitting for added security.
Features:
• Selectable momentary or latching mode for each channel
• Relay contact rating: 30VDC 10A max / 250VAC 10A max
Features:
• Selectable momentary or latching mode for each channel
• Relay contact rating: 30VDC 10A max / 250VAC 10A max
Specifications
- Size / Shape
- 23A,23A
- Battery quantity
- 1.0pc,1.0pc
- How is battery compartment kept closed
- Clip and Screw,Clip and Screw
- Type of Remote
- RF
- Number of Buttons
- 2.0pc
- Remote Frequency
- 40.0MHz-433.0MHz-40.0MHz
- Range
- 40.0m
- Power Supply Voltage
- 12.0V
- Current Draw
- 50.0mA
- Length
- 51.0mm
- Width
- 34.0mm
- Depth
- 13.0mm
- Packaged Dimensions
- 9.0cm(Length) x 7.5cm(Width) x 3.5cm(Height)
