12V DIL Latching Mini Relay
- Cat No:
- SY4060
In Stock
$11.95
Description

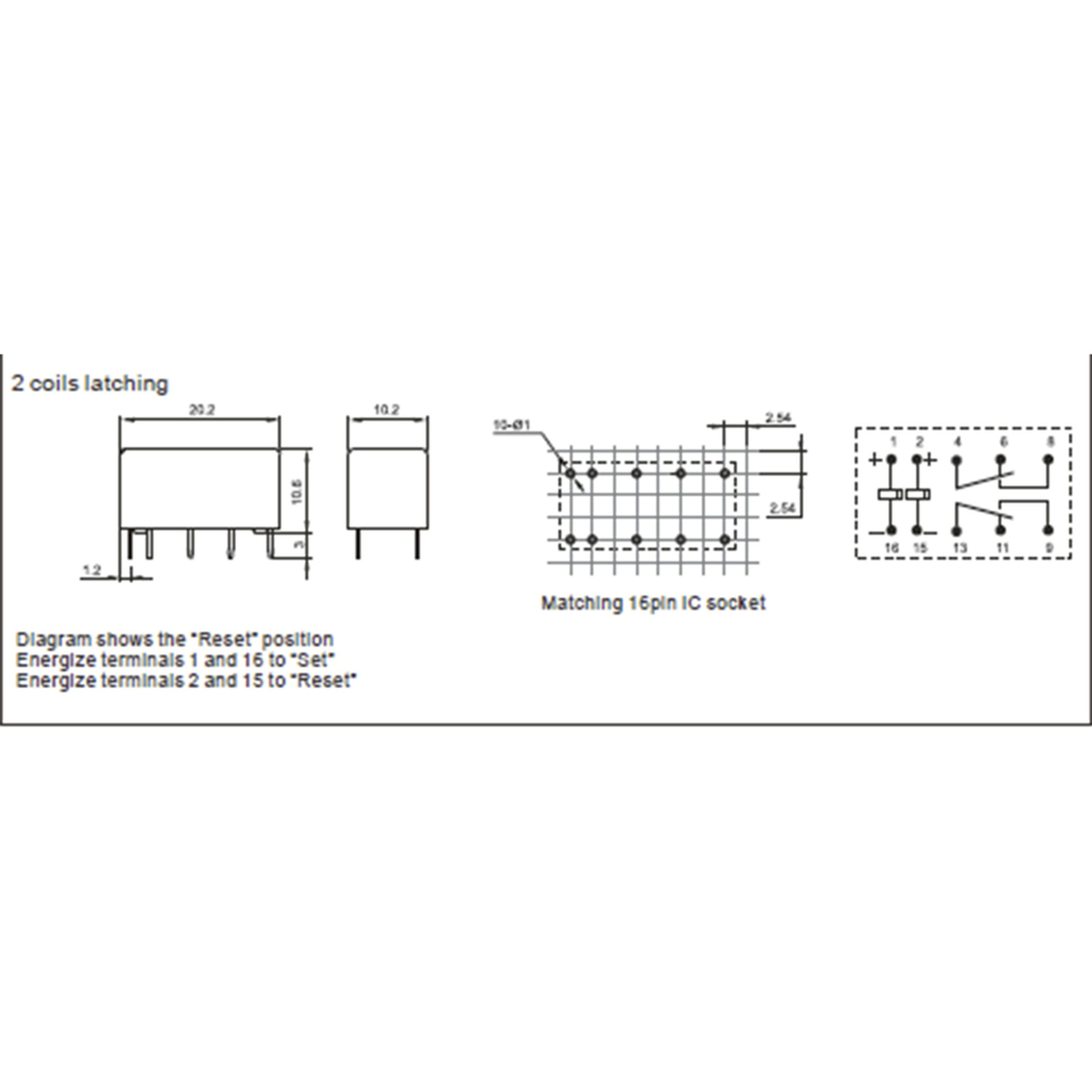

DIP style - will plug into 16 pin IC socket. Low profile mini 12V 2 coil latching relay. Highly sensitive - 180mW nominal power consumption.
Specifications
- Input
- DC
- Contact format
- DPDT
- Nominal Voltage
- 12.0V
- AC Contact Voltage
- 250.0V,250.0V
- DC Contact Voltage
- 220.0V,220.0V
- Latching
- true
- Maximum Power
- 60.0W
- AC Voltage
- 250.0V
- AC Current Draw
- 1.0A
- DC Voltage
- 12.0V
- DC Current Draw
- 2.0A
- Width
- 20.0mm
- Height
- 10.0mm
- Depth
- 10.0mm
- Packaged Dimensions
- 2.0cm(Length) x 1.0cm(Width) x 1.3cm(Height)
