12V SPDT PC Mount Relay - JW Series
- Cat No:
- SY4050
In Stock
$7.95
Description
Ideal for use in industrial, office and even home applications:
• Industrial: NC machines, robots, temperature, controllers
• Office: Photocopiers, vending machines
cHome: TV sets, VCR, microwave ovens
Features:
• Miniature package with universal terminal footprint
• High dielectric withstanding for transient protection: 10,000V surge in us between coil and contact
• Sealed construction
• Class B coil insulation
• Industrial: NC machines, robots, temperature, controllers
• Office: Photocopiers, vending machines
cHome: TV sets, VCR, microwave ovens
Features:
• Miniature package with universal terminal footprint
• High dielectric withstanding for transient protection: 10,000V surge in us between coil and contact
• Sealed construction
• Class B coil insulation
Specifications
- Input
- DC or AC Dual Mode
- Contact format
- SPDT
- Coil Resistance
- 270.0Ω
- AC Contact Voltage
- 250.0V,250.0V
- AC Switching Current (Opening)
- 5.0A-5.0A
- DC Contact Voltage
- 30.0V,30.0V
- DC Switching Current (Opening)
- 5.0A
- Operation Time
- 15.0ms
- Release Time
- 5.0ms
- AC Voltage
- 250.0V
- AC Current Draw
- 10.0A
- DC Voltage
- 12.0V
- DC Current Draw
- 10.0A

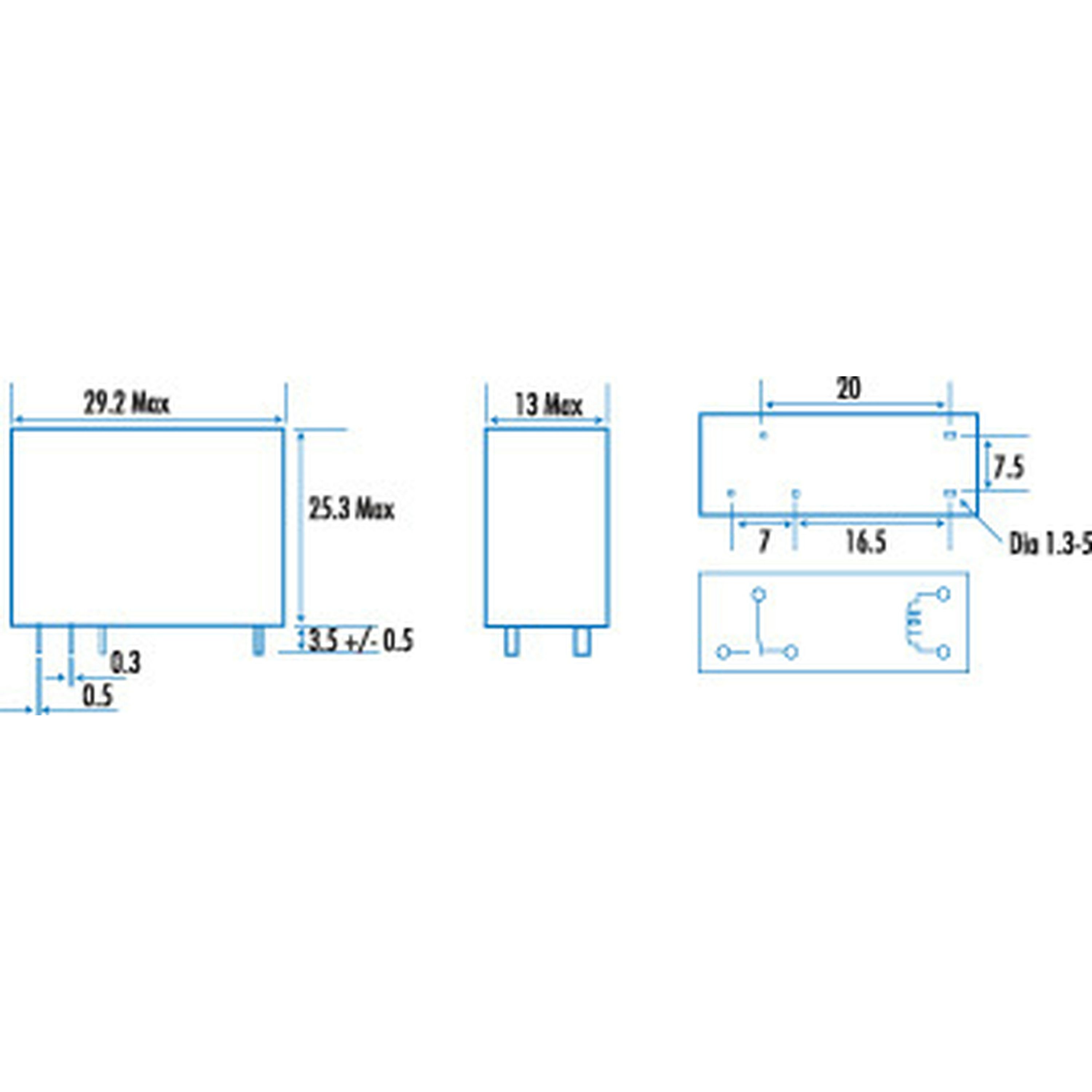

- Packaged Dimensions
- 3.0cm(Length) x 1.4cm(Width) x 3.2cm(Height)
