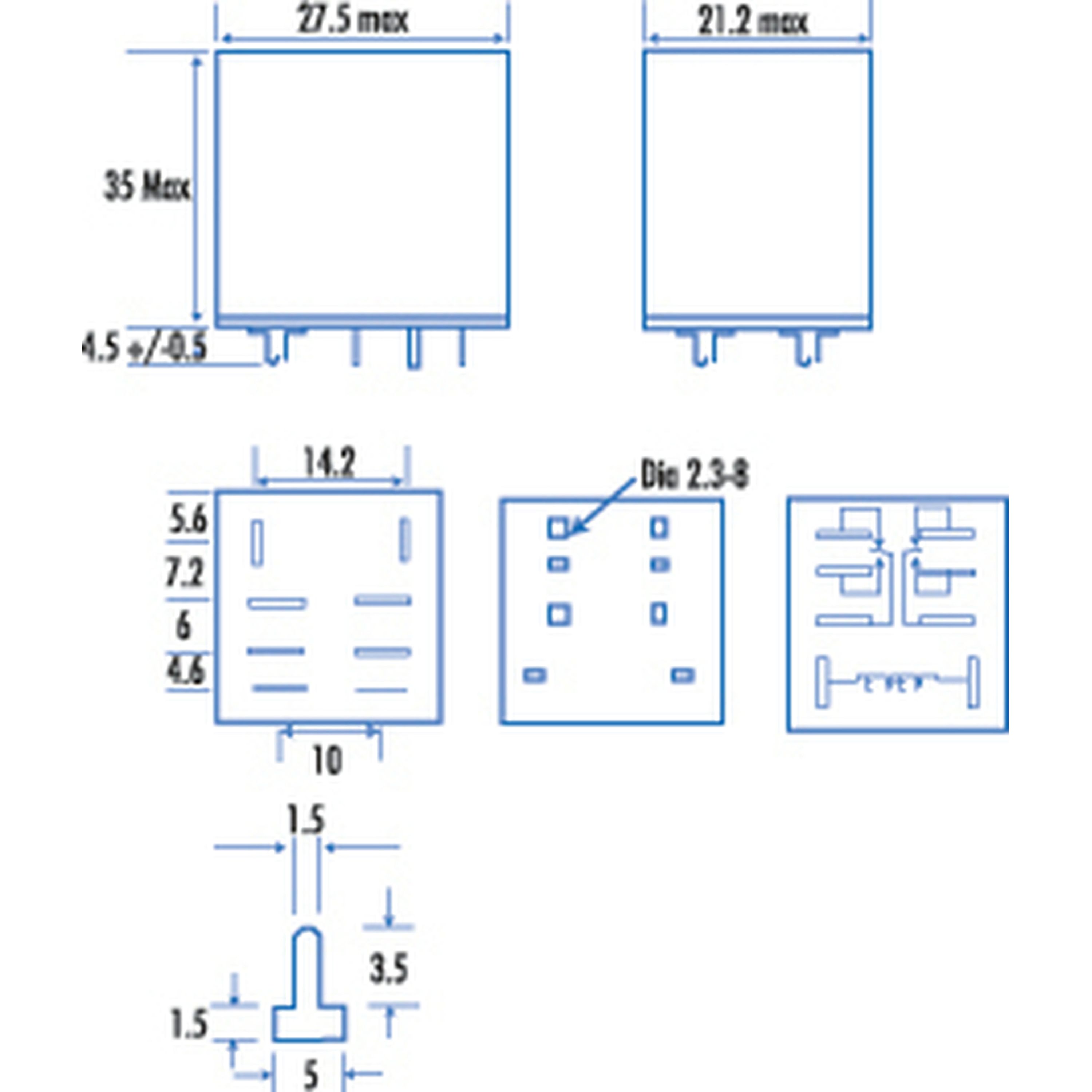

12VDC DPDT Relay - 10A 240VAC/24VDC Contacts
- Cat No:
- SY4008
In Stock
$8.95
Description
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB. Operational life: 20 million cycles
Specifications
- Device Type
- Cradle Mounting Relay
- Input
- DC
- Contact format
- DPDT
- Nominal Voltage
- 12.0V
- Coil Resistance
- 160.0Ω
- Coil Current
- 75.0mA
- AC Contact Voltage
- 240.0V,240.0V
- AC Switching Current (Opening)
- 10.0A-10.0A
- DC Contact Voltage
- 24.0V,24.0V
- DC Switching Current (Opening)
- 10.0A
- Operation Time
- 25.0ms
- DC Voltage
- 12.0V
- DC Current Draw
- 75.0mA
- Length
- 35.0mm
- Width
- 21.2mm
- Height
- 27.5mm
- Packaged Dimensions
- 2.7cm(Length) x 2.1cm(Width) x 3.2cm(Height)
