POWERTECH
1K ohm Centre Tapped - 8 ohm Output Transformer
- Cat No:
- MM2532
In Stock
$6.95
Description

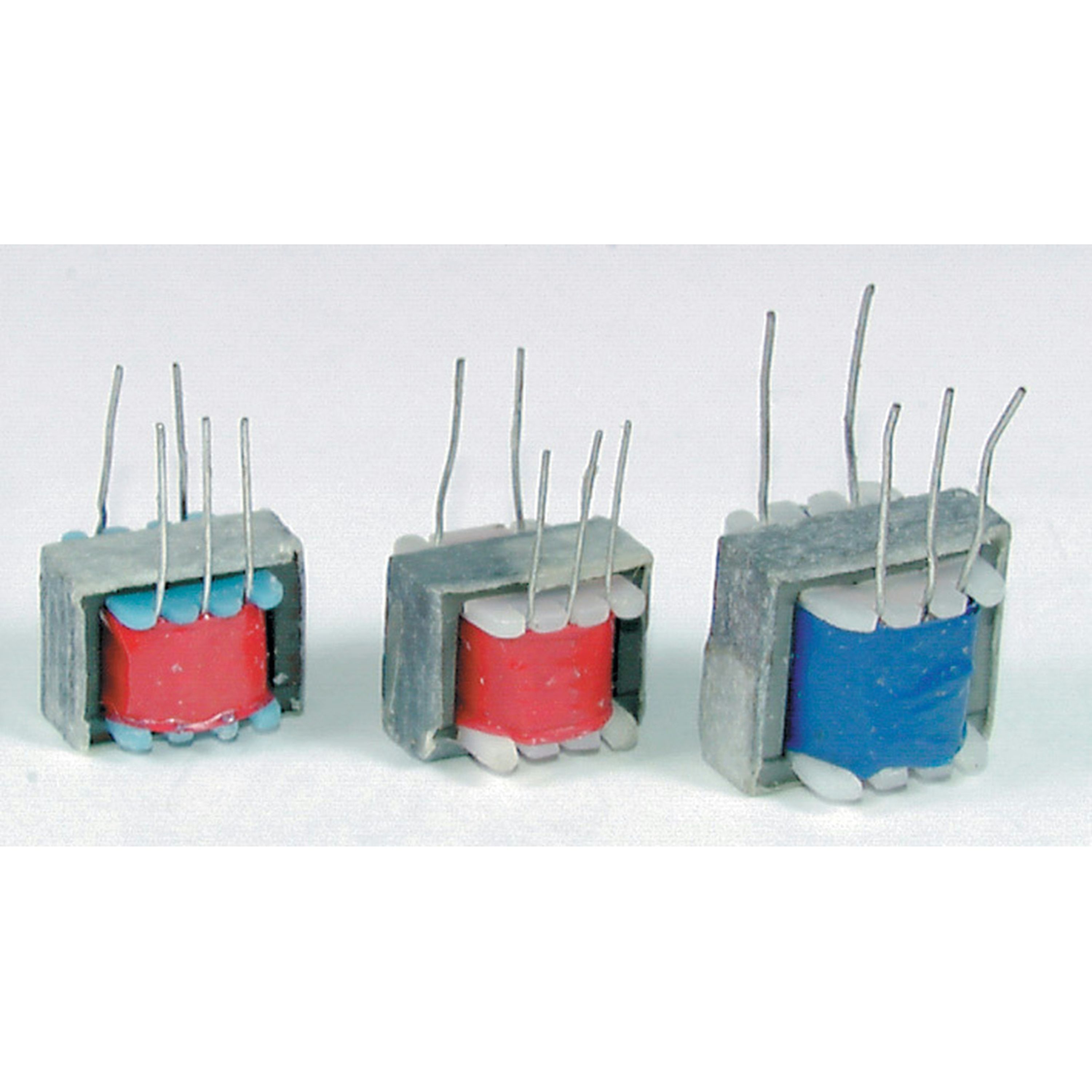

Designed to be PCB mounted, these small ferrite core transformers have a power handling of 350mW, with a primary winding impedance of 1k and secondary winding impedance of 8 ohms.
Specifications
- Core Material
- Ferrite
- Input Impedance
- 1.0kΩ
- Output Impedance
- 8.0Ω
- Continuous Power
- 350.0mW

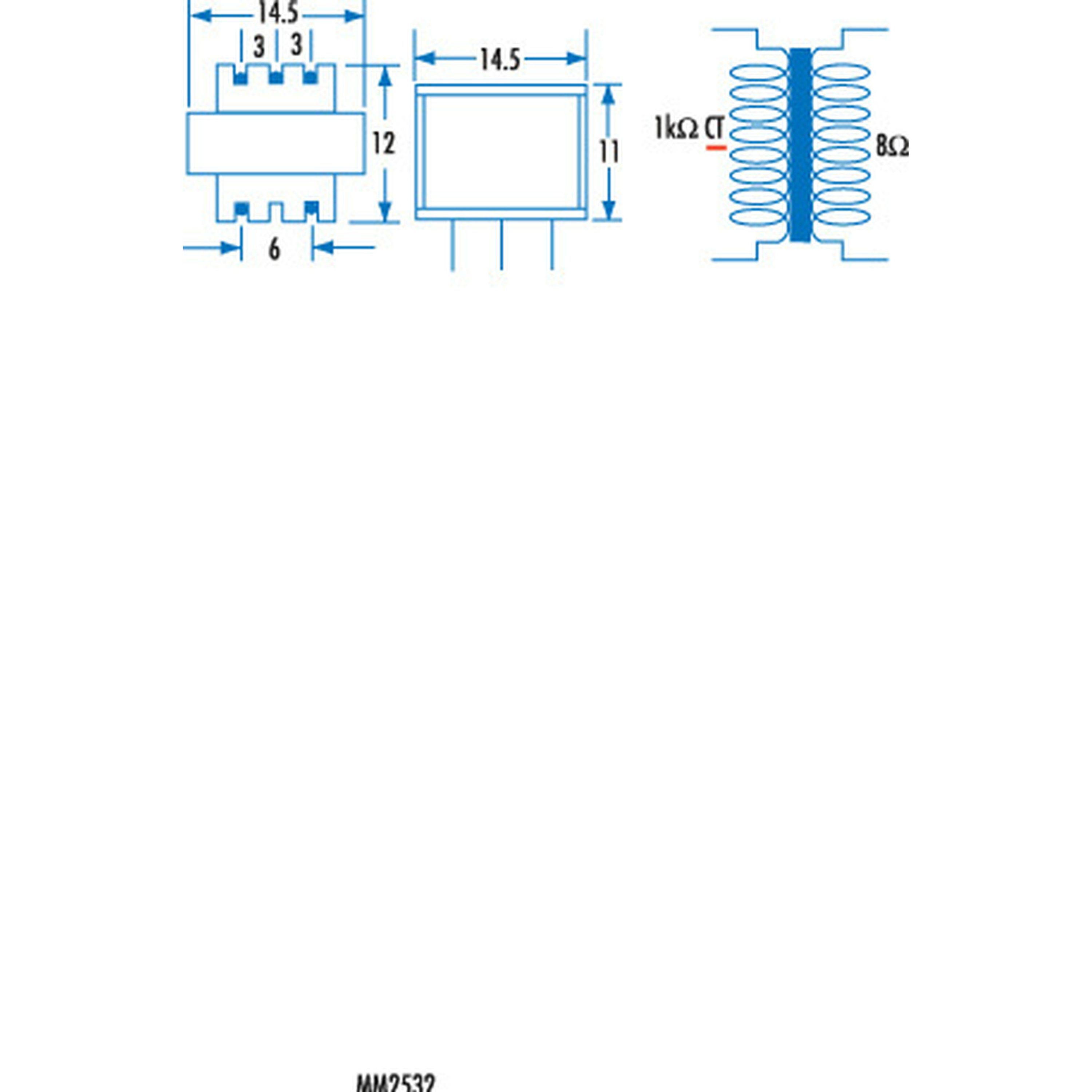

- Packaged Dimensions
- 1.3cm(Length) x 1.7cm(Width) x 1.5cm(Height)
