20A 12V SPST PCB Mount Relay
- Cat No:
- SY4029
In Stock
$8.75
Description
PCB mounting 12V relay with QC lug terminals.
Contact current: 20A @ 24VDC, 20A @250VAC max
Contact current: 20A @ 24VDC, 20A @250VAC max
Specifications
- Input
- DC or AC Dual Mode
- Contact format
- SPST
- Nominal Voltage
- 12.0V
- Coil Resistance
- 275.0Ω
- Coil Current
- 44.0mA
- AC Contact Voltage
- 250.0V,250.0V
- DC Contact Voltage
- 12.0V,12.0V
- DC Switching Current (Opening)
- 20.0A
- AC Voltage
- 250.0V
- DC Voltage
- 12.0V
- DC Current Draw
- 20.0A

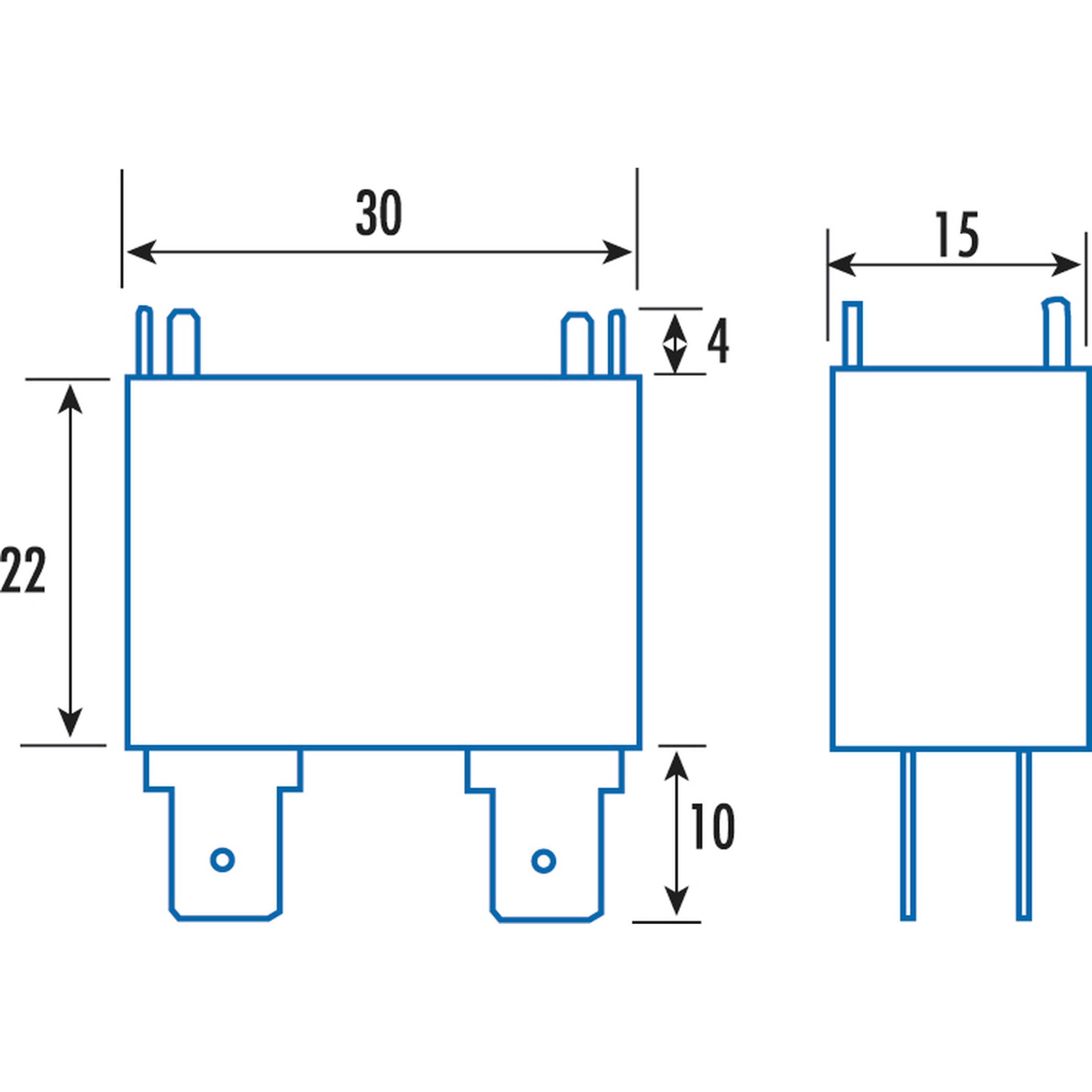

- Length
- 30.0mm
- Width
- 22.0mm
- Height
- 15.0mm
- Packaged Dimensions
- 3.0cm(Length) x 1.5cm(Width) x 3.5cm(Height)
