POWERTECH

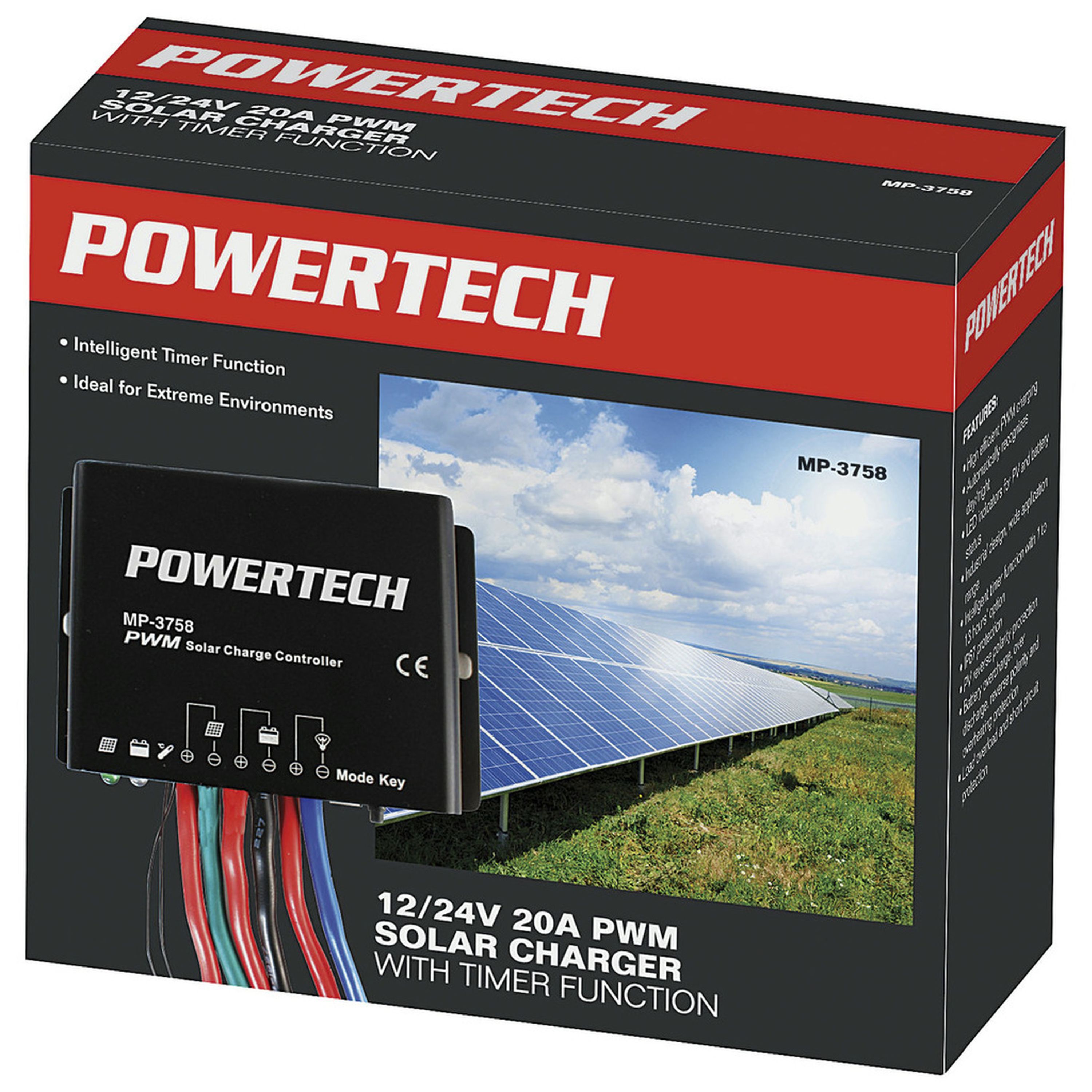

20A PWM Solar Charge Controller 12/24V with Timer Function IP67
- Cat No:
- MP3758
In Stock
$99.95
Description
A highly efficient fully automatic 12/24V PWM solar charge controller that adopts digital technology which increases battery lifetime and improves solar system performance. With a robust industrial housing and IP67 protection this charge controller is suited to most applications especially extreme outdoor environments where corrosion, dust and water ingress are prevalent. Capable of automatically detecting day/night it comes with an inbuilt timer which can be set to operate loads at specific intervals or manually in the night.
Features:
Features:
- High efficient PWM charging
- Automatically recognises day/night
- LED indicators for PV and battery status
- Intelligent timer function with 1 to 13 hours option
- PV reverse polarity protection
- Battery overcharge, over discharge, reverse polarity and overheating protection
- Load overload and short circuit protection
- Voltage: 12/24VDC Automatic
- IP Rating: IP67
Specifications
- Charge Controller Technology
- Pulse Width Modulated (PWM)
- Max PV Open Circuit Voltage
- 50.0V
- Max Charging Current
- 20.0A
- Max Load Current
- 20.0A
- Max Solar Panel Array
- 240.0W,480.0W
- Operating Temperature
- -35.0°C-55.0°C
- IP Rating
- IP67
- Dust/Particle Ingress Protection
- 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection
- 7 - Immersion up to 1m
- DC Voltage
- 12.0V,24.0V
- DC current rating
- 20.0A
- Input Type
- Flyleads
- Output Type
- Flyleads
- Length
- 109.0mm
- Width
- 75.0mm
- Height
- 26.0mm
- Weight
- 435.0g
- Packaged Dimensions
- 12.5cm(Length) x 11.6cm(Width) x 4.9cm(Height)
