240V AC Panel Mount Relay

Cat No:: SY4044

Out of Stock

Select Variant

$29.95

Description

Features:

- Coil resistance : For 50Hz : 4500 ohm
- Coil current: 16.7mA
- Pickup voltage: 192V
- Drop out voltage: 48V
- Power consumption: 4W

Specifications

Input: DC or AC Dual Mode
Contact format: DPDT
Coil Resistance: 3800.0Ω
AC Contact Voltage: 240.0V,240.0V
AC Voltage: 240.0V
AC Current Draw: 30.0A

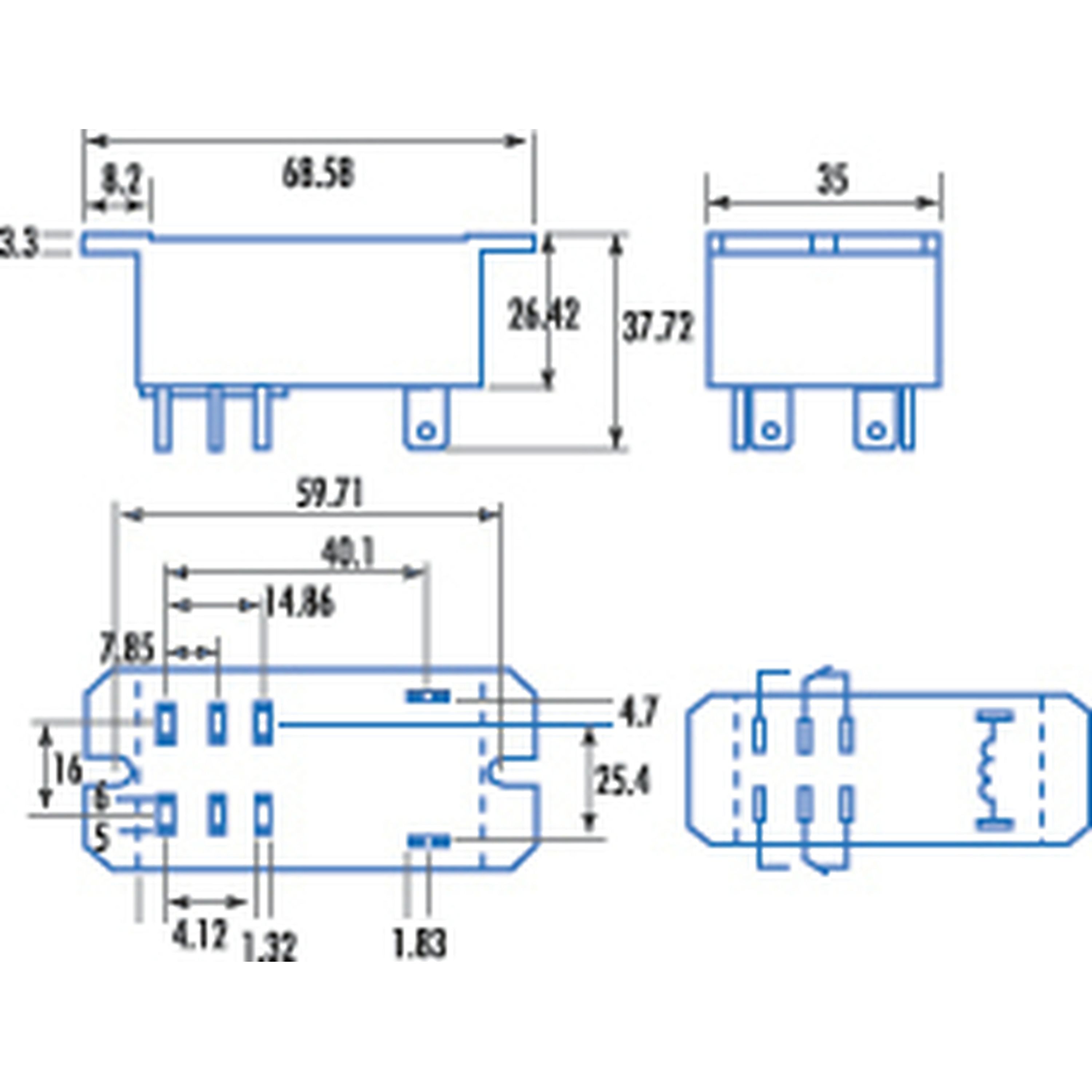

Length: 68.58mm
Width: 37.72mm
Height: 35.0mm
Packaged Dimensions: 6.5cm(Length) x 3.2cm(Width) x 3.5cm(Height)

Downloads

Datasheet Datasheet
