POWERTECH

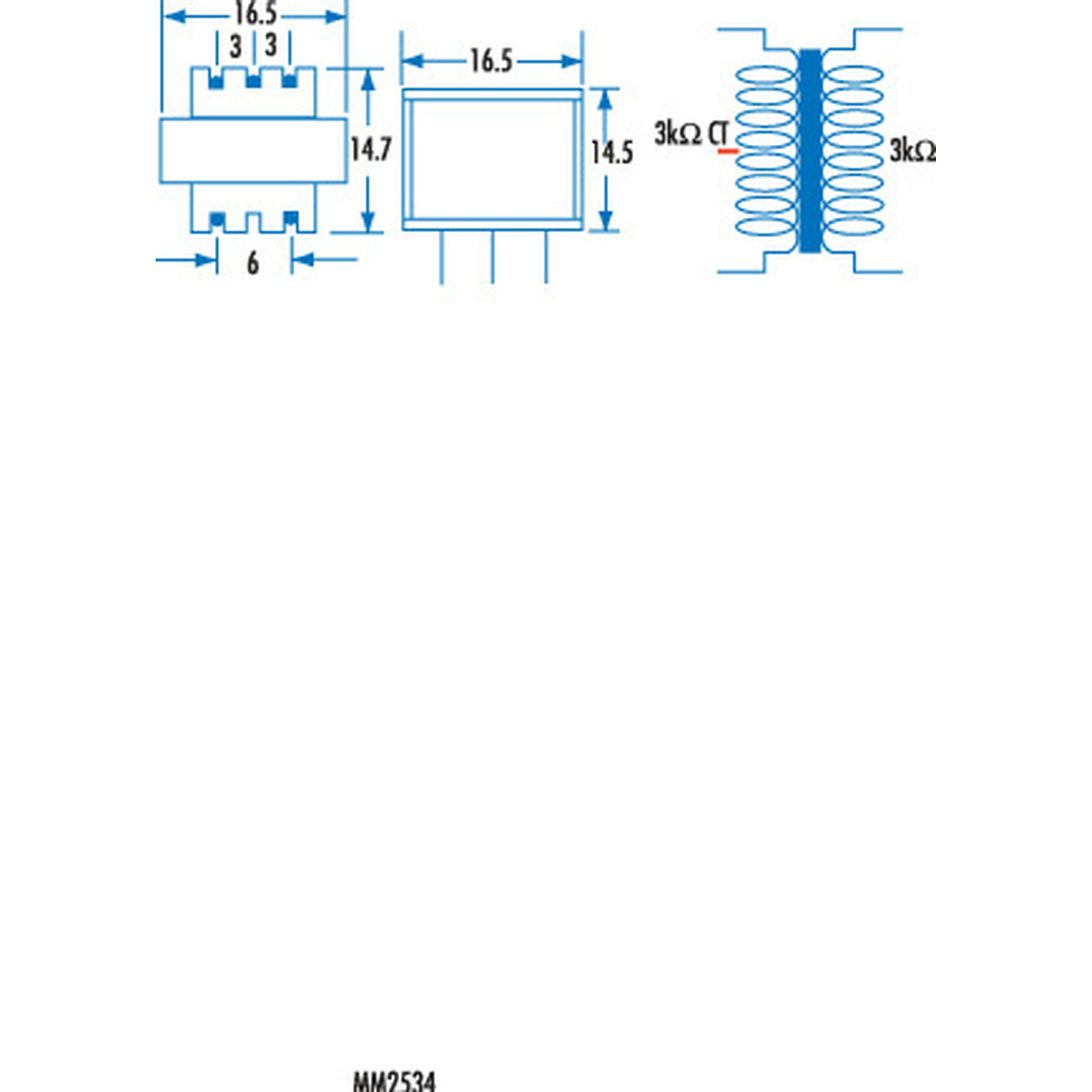

3kohm Centre Tap to 3k ohm Coupling Transformer
- Cat No:
- MM2534
In Stock
$5.95
Description
Designed to be PCB mounted, these small iron core transformers have a power handling of 350mW. Both the Primary and secondary winding have an impedance of 3k.
Specifications
- Secondary Winding Configuration
- Centre Tapped
- Core Material
- Iron
- Input Impedance
- 3.0kΩ
- Output Impedance
- 3.0kΩ
- Packaged Dimensions
- 2.5cm(Length) x 1.6cm(Width) x 1.6cm(Height)
