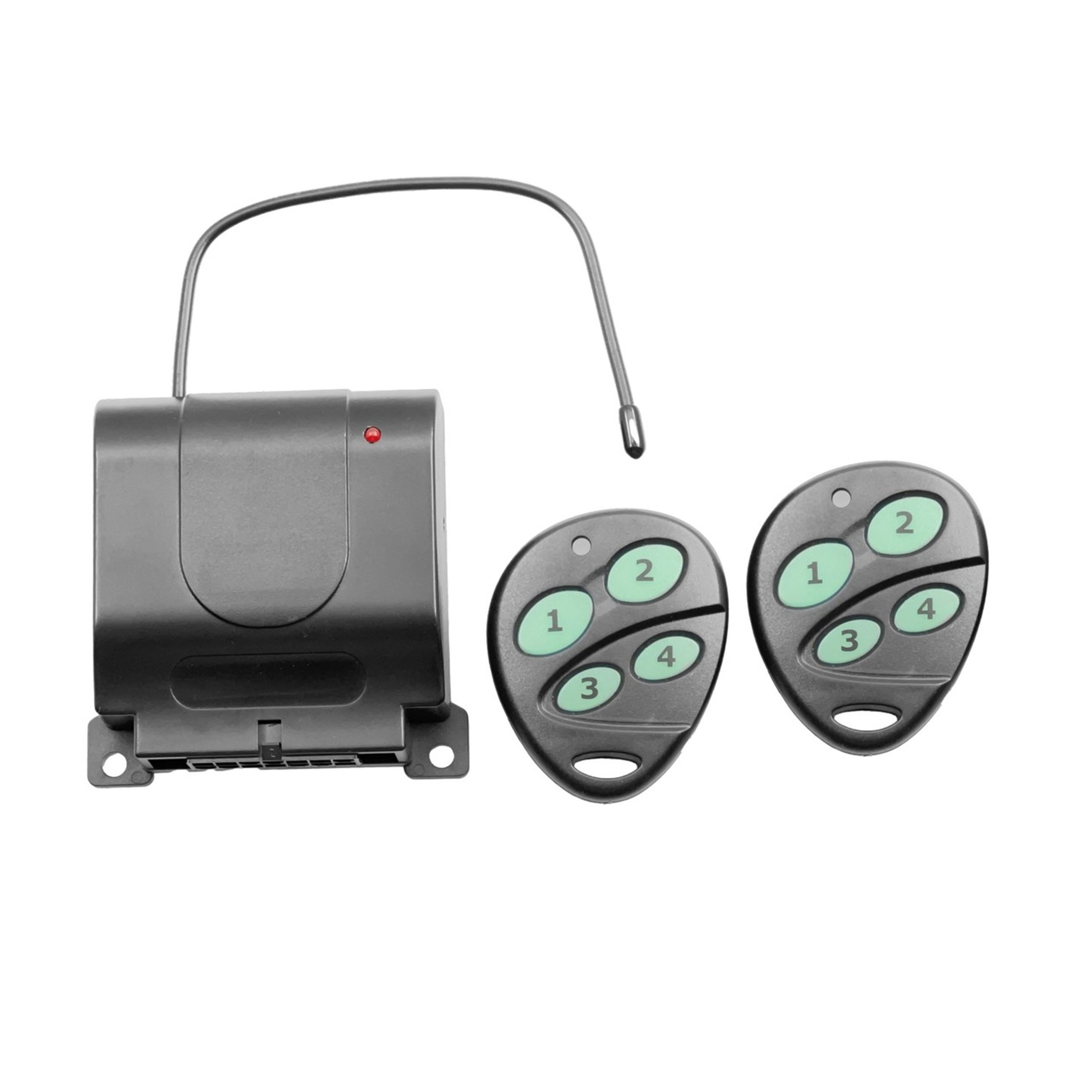

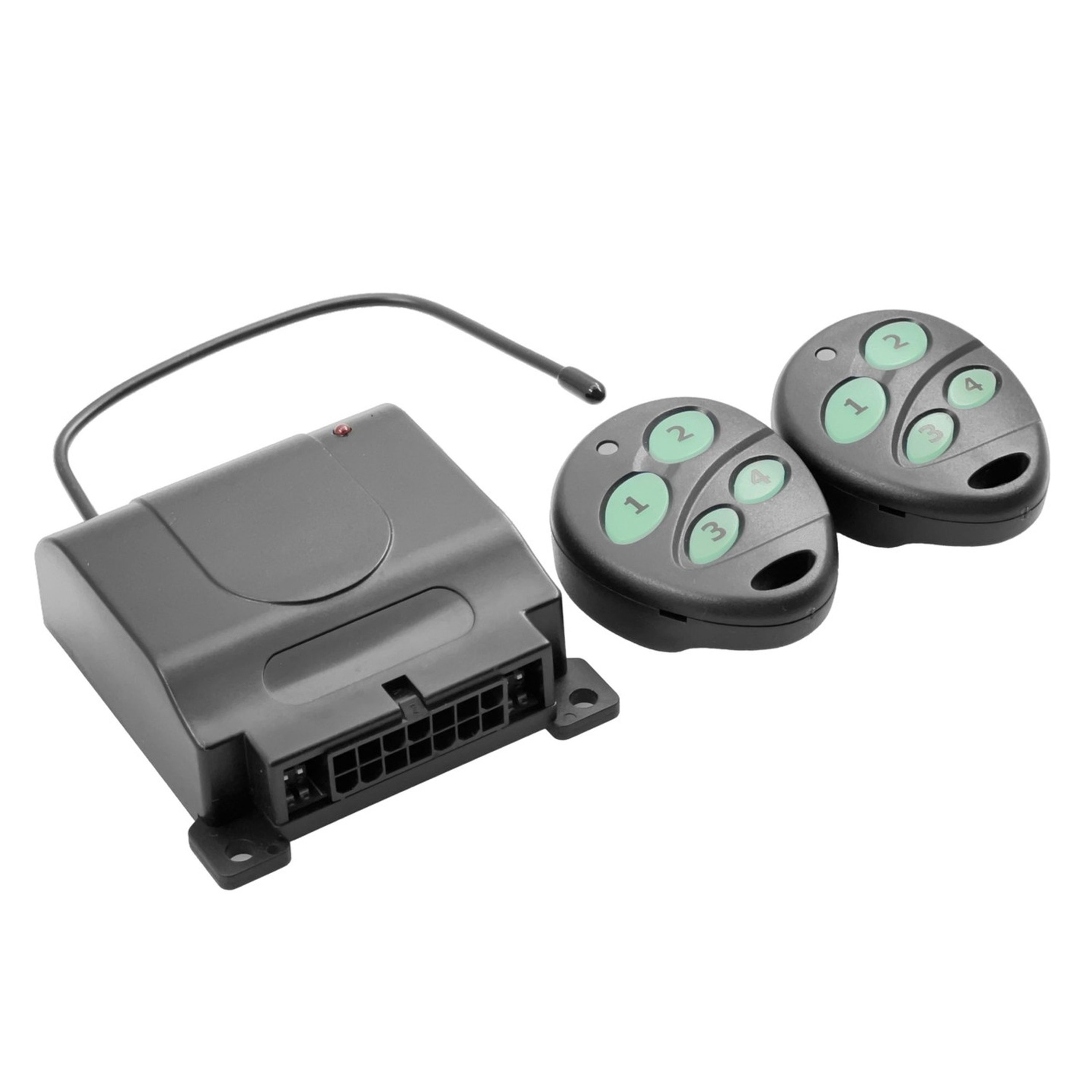

4-Channel W/less Rmt Ctrl Relay with 2 Key Fob

Control up to 4 different devices with a single controller and key fob remote. The receiver unit has 4 channels, each of which can be independently configured to momentary or latching mode via DIP switch. Countless access control applications - doors, alarms, entry points, arming or disarming security systems all in one unit.

Features

• Power input: 10 - 15VDC
• Transmission frequency: 433.92MHz
• Transmitter features: SAW locked, rolling-code, water-resistant.
• Transmission range: 300m (up to 300m with unobstructed line-of-sight)
• Learning capacity: 250 remotes per module.
• Outputs: 4 x NO/NC relay contacts individually selectable as momentary or latched.
• Relay contacts: 5A max at 14VDC

Includes two keychain remotes with pre-installed battery (27A 12V Alkaline - SB2422)

Spare remote - sold separately Cat. LR8882
Spare hardwired remote - sold separately Cat. LR8880

Setup help here
