5 Volt SPST DIL Reed Relay
- Cat No:
- SY4030
In Stock
$4.75
Description
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open.
Features:
- Must Op: 3.75VDC
- Must Release: 0.8VDC
- Contact Voltage: 18max
Specifications
- Device Type
- Reed Relay
- Input
- DC
- Contact format
- SPST
- Nominal Voltage
- 5.0V
- Pickup Voltage
- 3.75V
- Dropout Voltage
- 0.8V
- Coil Resistance
- 500.0Ω
- Coil Current
- 10.0mA
- DC Contact Voltage
- 5.0V
- DC Voltage
- 5.0V

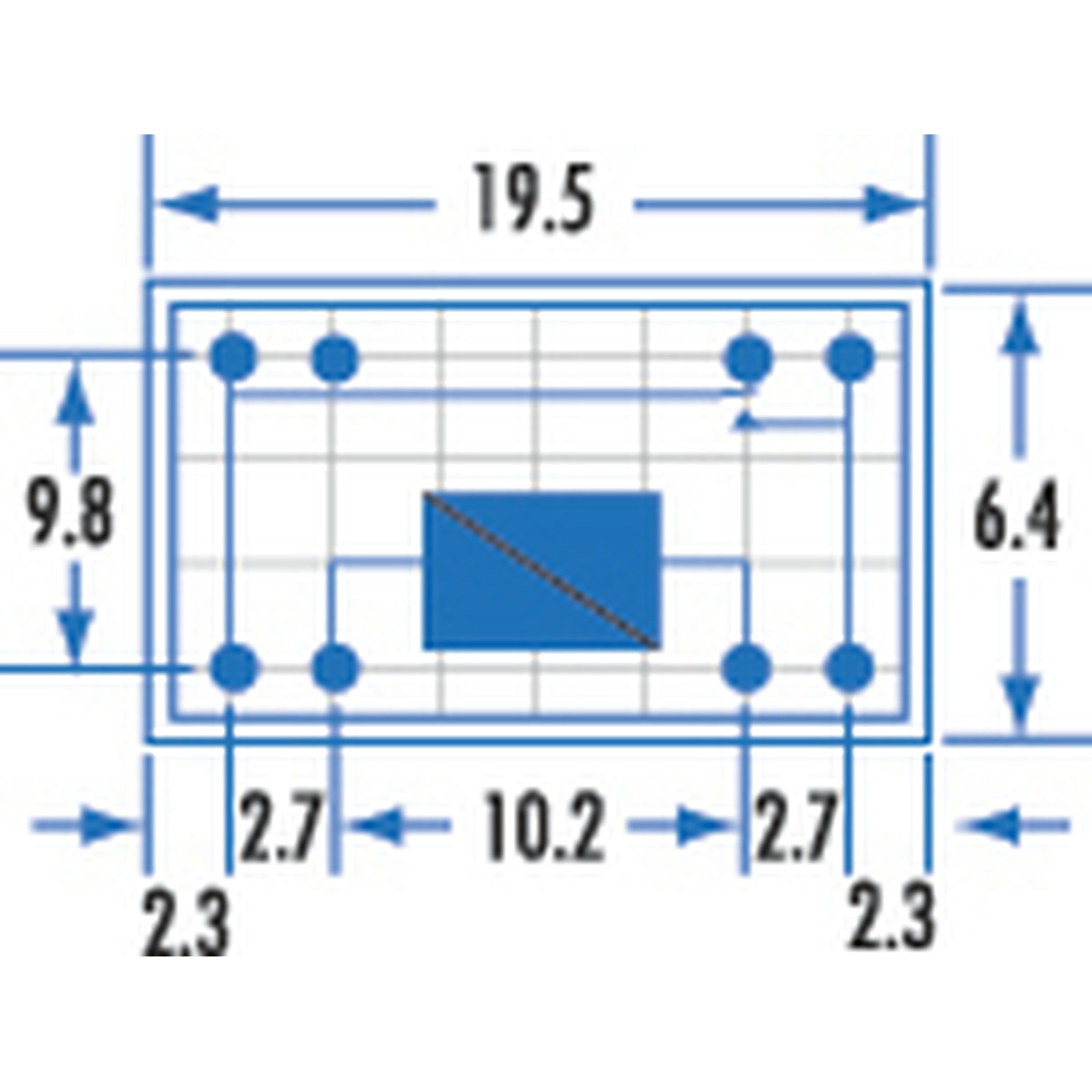

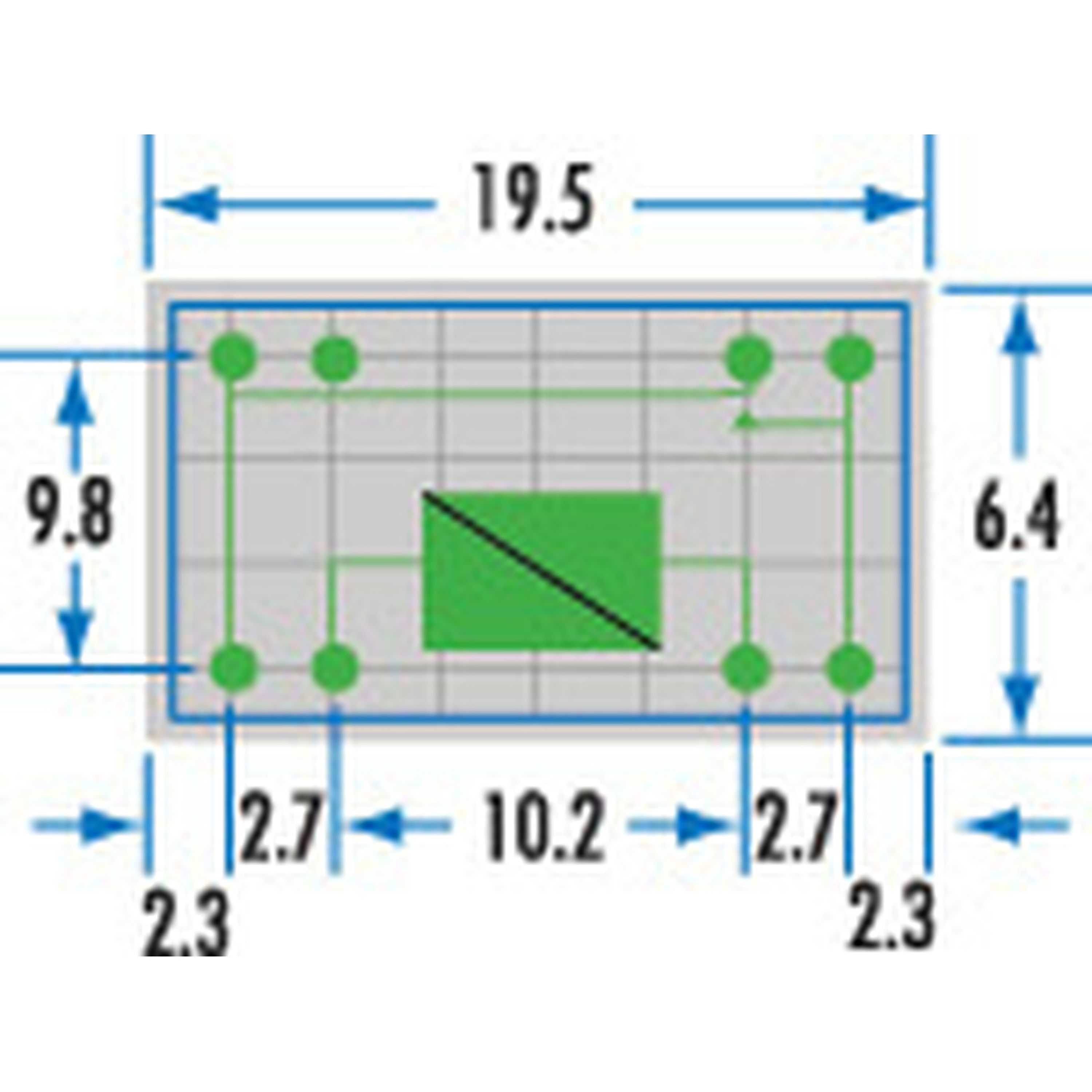

- Length
- 19.5mm
- Width
- 10.2mm
- Height
- 9.8mm
- Packaged Dimensions
- 1.8cm(Length) x 0.9cm(Width) x 0.7cm(Height)
