5V SPST DIL Reed Relay
- Cat No:
- SY4036
In Stock
$3.95
Description
Small and light weight.
Features:
- Pickup Voltage: 3.5V DC
- Allowable Voltage: 160%
- Power Consumption (W): 0.1
Specifications
- Device Type
- Reed Relay
- Input
- DC
- Contact format
- SPST
- Nominal Voltage
- 5.0V
- Pickup Voltage
- 3.5V
- Dropout Voltage
- 0.5V
- Coil Resistance
- 500.0Ω
- Coil Current
- 20.0mA
- Power Consumption
- 0.1W
- DC Voltage
- 5.0V
- DC Current Draw
- 1.0A

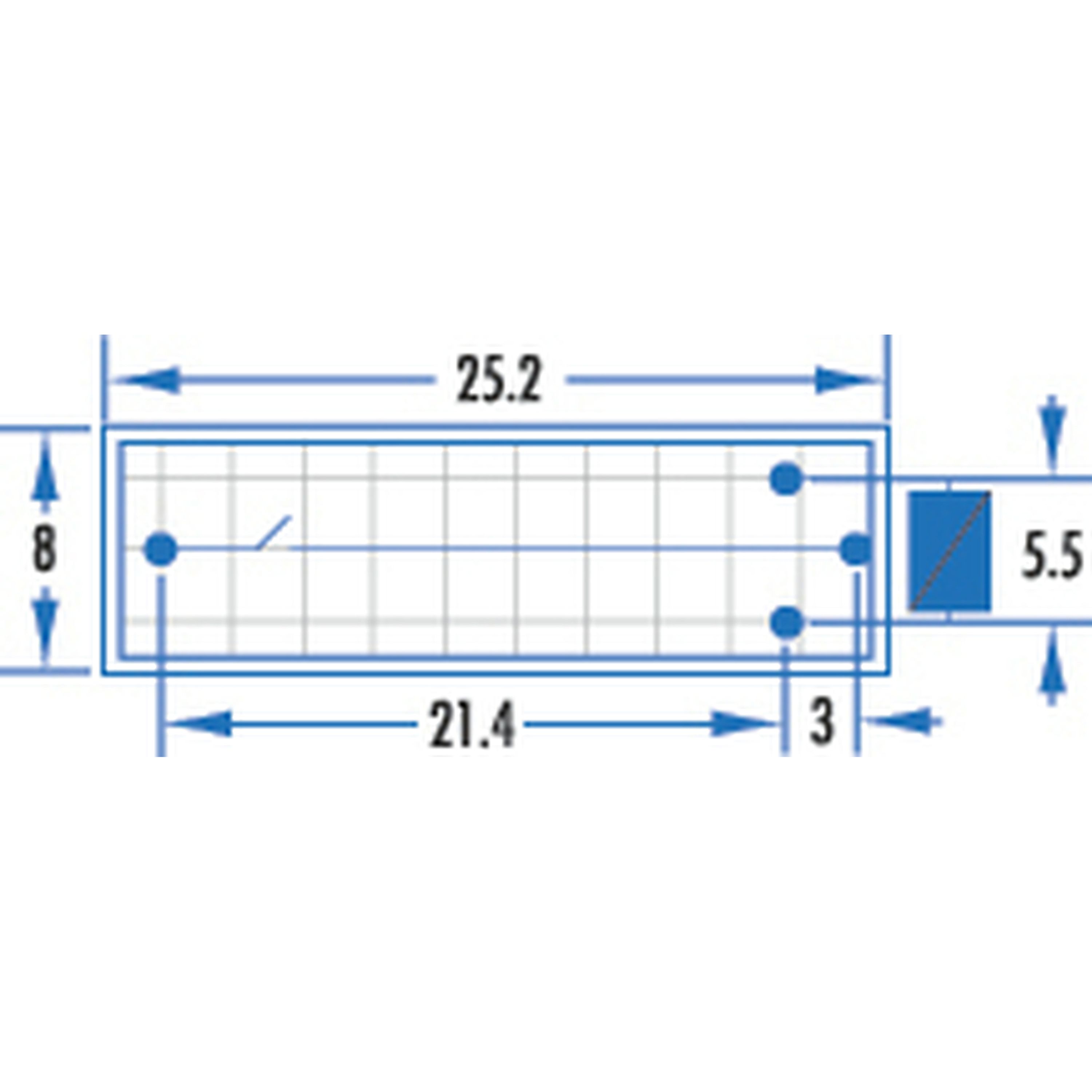

- Packaged Dimensions
- 2.5cm(Length) x 1.3cm(Width) x 0.7cm(Height)
