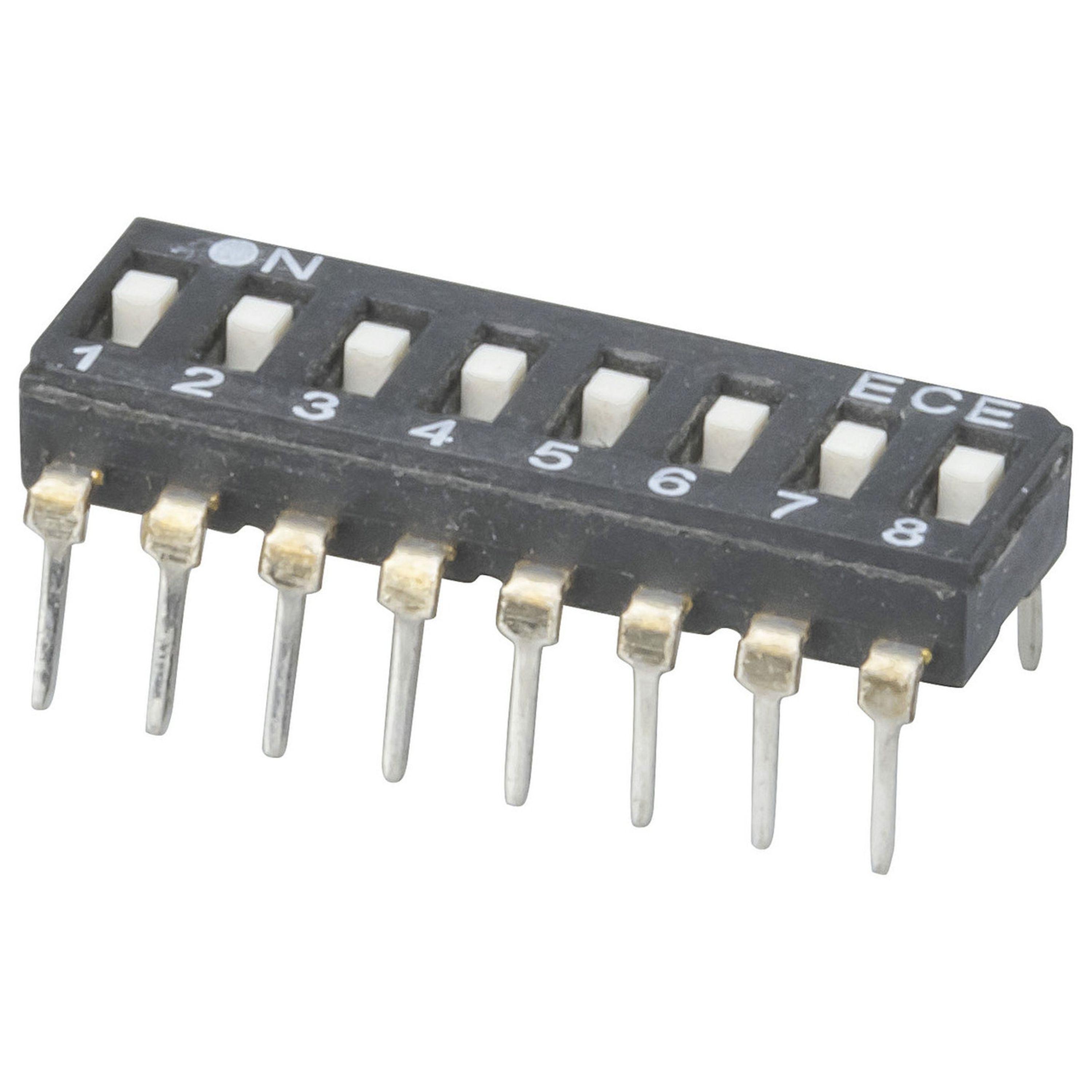

8 Way DIL Switch 16 Pin DIL PACKAGE
- Cat No:
- SM1024
In Stock
$3.60
Description
Lower profile 4way DIL switch
Features:- Moulded 0.3 IC packing outline for automatic insertion
- Smaller sized
- Twin contact design
- Gold plated contact and tin plated terminals.
Specifications
- Switch Type
- DIL
- Pole Throw Type
- SPST
- Poles / Contacts
- 16.0 pole
- Throws / Positions
- 2.0pos
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Black
- Contact Resistance
- 50.0mΩ
- Dielectric Strength
- 500.0V
- Stackable Switch
- true
- DC Voltage
- 24.0V
- DC current rating
- 25.0mA
- Switch Type
- DIL
- Poles / Contacts
- 16.0 pole
- Throws / Positions
- 2.0 pos
- Contact Resistance
- 50.0 mΩ
- Dielectric Strength
- 500.0 V
- Switch Connection
- PCB Pins
- Stackable Switch
- TRUE
- Switch Colour Coded
- Black
- Pole Throw Type
- SPST
- DC Current Rating
- 25.0 mA
- DC Voltage
- 24.0 V

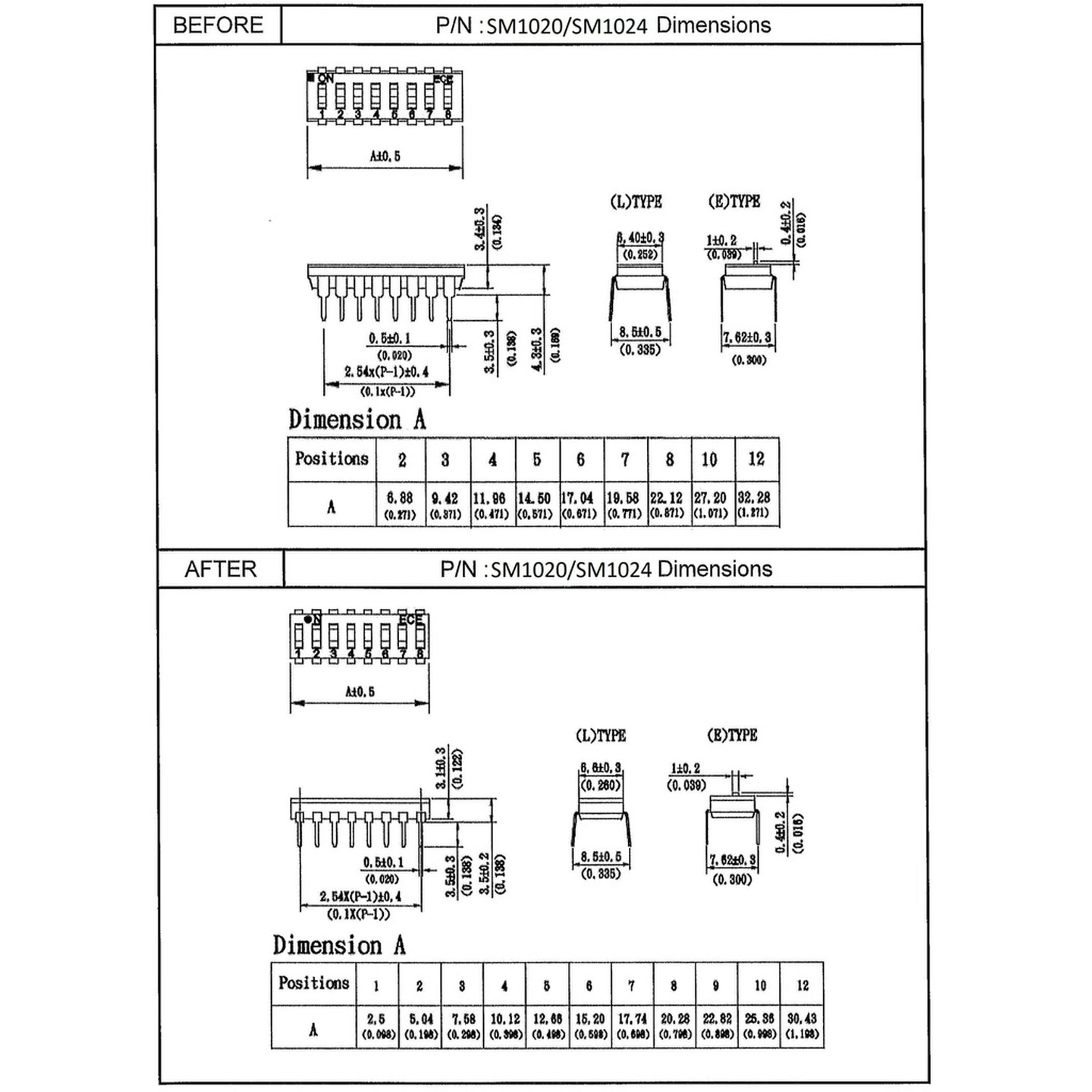

- Packaged Dimensions
- 2.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
