9-30V, 30VA, 1A Multi-Tapped - Type 2165 Transformer
- Cat No:
- MM2005
In Stock
$33.95
Description

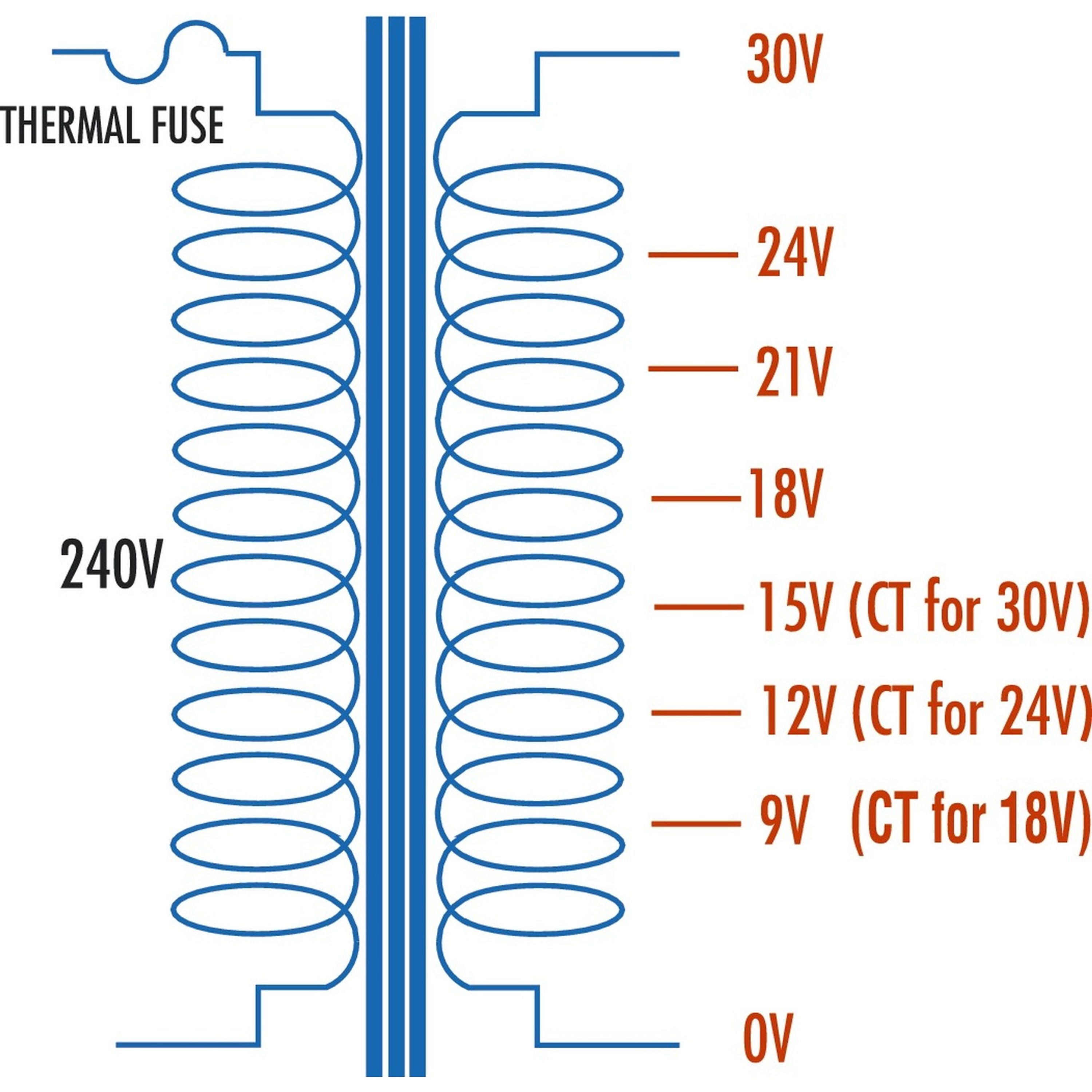

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
• Primary Connection: 200mm Fly Leads
• Primary Connection: 200mm Fly Leads
Specifications
- Type of Transformer
- Laminated Core
- Case Type
- 2165
- Primary Winding Connection
- Flyleads
- Secondary Winding Connection
- Solder Tags
- Secondary Winding Configuration
- Multi-tapped
- Number of Taps
- 7pc
- Temperature Rise Above Ambient at Rated Power
- 60°C
- Regulation
- 8%
- Core Material
- Laminated Iron
- Magnetising Current
- 60mA

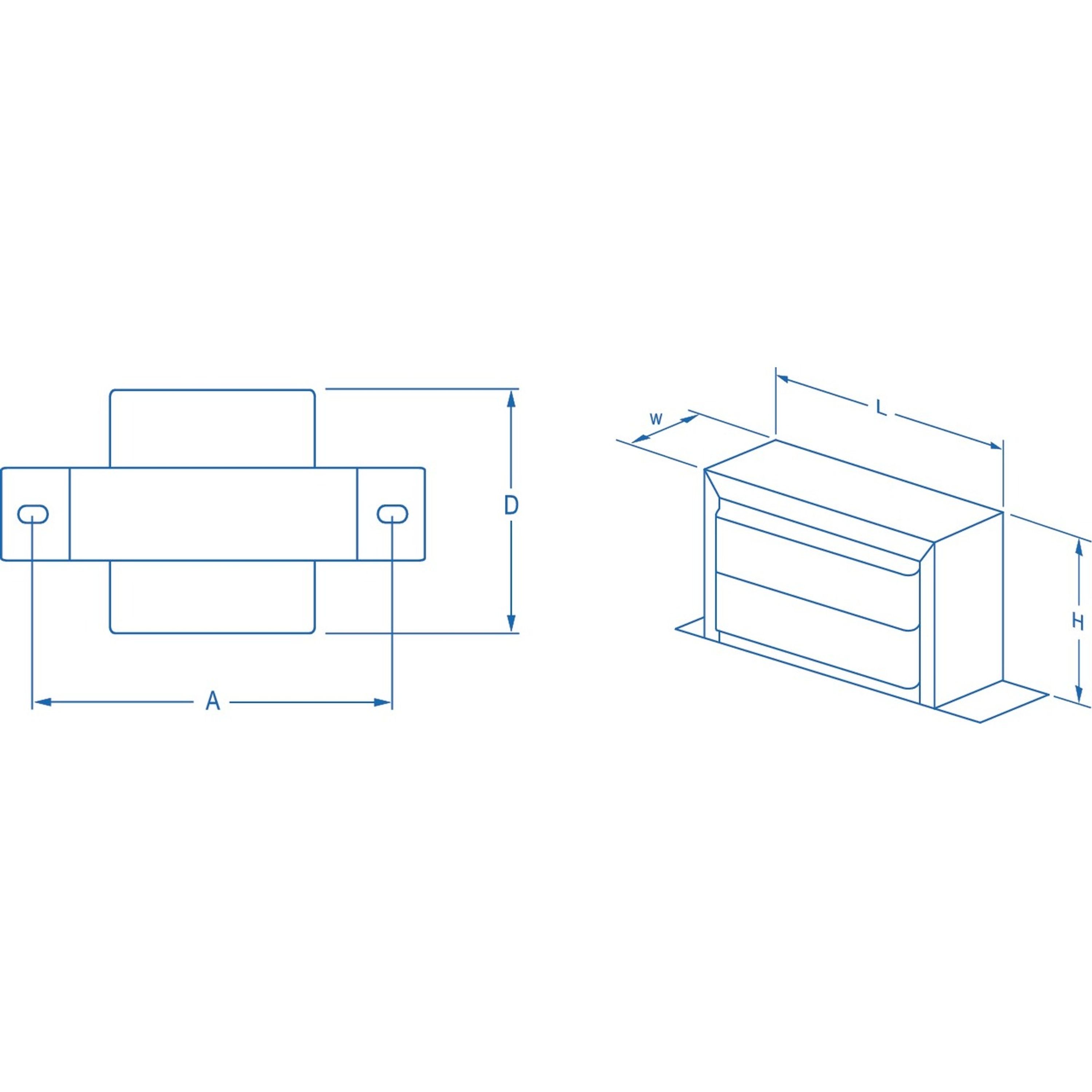

- Mount Spacing (A)
- 85mm
- Core Winding Depth (D)
- 65mm
- Case Length (L)
- 69mm
- Case Width (W)
- 35mm
- Case Height (H)
- 59mm
- Mains Voltage Range
- 240V, 240V, 240V
- Max Input Power
- 30VA
- AC Voltage rating
- 9V, 12V, 15V, 18V, 21V, 24V, 30V
- AC current rating
- 1A
- Type of converter or transformer
- laminated/toroidal transformer
- Weight
- 955g
- Packaged Dimensions
- 10.2 x 6.4 x 6.8 cm
