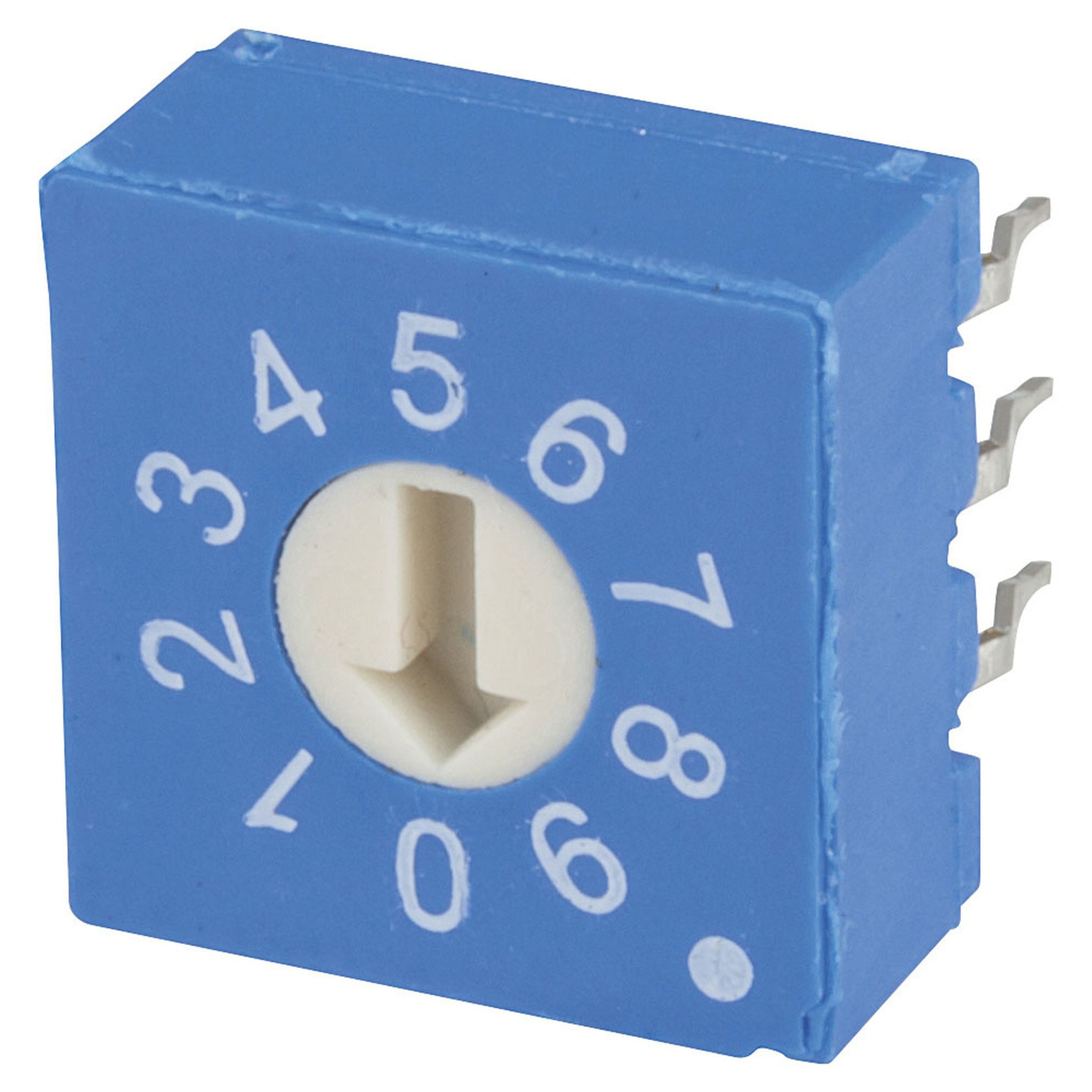

Binary Coded DIL Rotary Switches - BINARY CODED DECIMAL
- Cat No:
- SR1222
In Stock
$4.95
Description
These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is mouldedin UL 94V-0 flame retardant plastic.
Features:
Contact rating: Switching: 25mA@24VDC
Non Switching: 100mA@50VDC
Rotational Torque Required: 500gf-cm
Vibration: Per MIL-STD-202F Method 204D
Solderability After flux: 230 +/-5°C for 5 +/- 0.5 sec- 0 through 9 output
Specifications
- Poles / Contacts
- 10.0 pole*
- Switch Type
- Rotary
- AC Current Rating
- 25.0 mA (DC)*
- Throws / Positions
- 10.0 pos
- Break / Make Function
- Break Before Make (BBM)*
- Switch Connection
- Spade Terminals
- AC Voltage Rating
- 250.0 V (Dielectric)
- Operating Temperature
- 70°C
- Length
- 10mm
- Width
- 10mm
- Height
- 5mm
- Packaged Dimensions
- 1 x 1 x 1 cm
- Switch Type
- Rotary
- Poles / Contacts
- 10 pole
- Switch Connection
- Spade Terminals
- Cycle Life
- 20000 cycles
- Contact Resistance
- 100mΩ
- Insulation Resistance
- 1000MΩ
- Dielectric Strength
- 250V
- DC Voltage
- 24V
- DC current rating
- 25mA
