Digitech Phono Stereo Preamplifier
- Cat No:
- AC1591
In Stock
$59.95
Description
Vinyl records have become all the rage again but you may encounter a couple of issues which are addressed by this unit:
Firstly, vinyl records are manufactured in a way that requires frequency equalisation of the turntable output to make them sound right. Secondly, if your amplifier doesn’t have a phono input then you won’t be able to listen to your records.

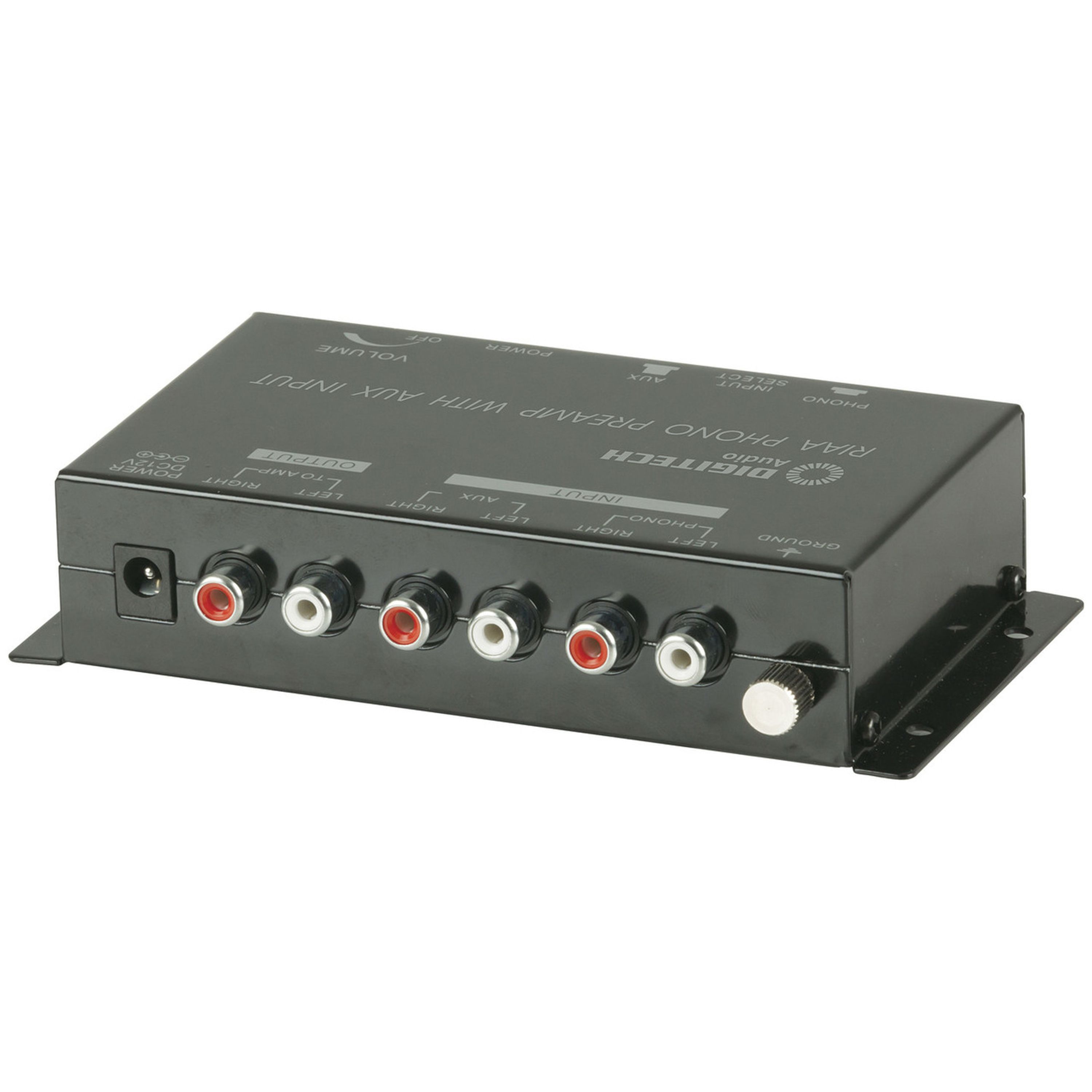

There is a front panel switch to choose between input devices and a volume control on the front panel to adjust the output level as necessary as your turntables' cartridge may provide a lower or higher output than expected. All connections are made with the popular RCA connectors. Power is provided by an included mains adaptor.
Features:
- Volume control
- Stereo RCA output
- Function can be set to mix or IND
- Screw mount holes
- Power: 12VDC at 500mA
- Input Impedance : 47KΩ
- Output Impedance : 100Ω
- Phono Amplitude Gain : 40dB (@ 1KHz)
- Auxiliary Amplitude Gain : 6 dB
- Maximum Input : 50mVpp
- Output Level : 5Vpp
- Frequency Response : 20 Hz to 20KHz
- Signal to Noise Ratio : 70dB
Specifications
- Input type
- Audio
- Input Connection
- RCA Stereo Pair
- Number of inputs
- 2.0pc
- Output Type
- Audio
- Output Connection
- RCA Stereo Pair
- Number of Outputs
- 1.0pc
- Item Connection
- Barrel Plug
- Suitable PSU Included
- true
- Width
- 145.0mm
- Height
- 31.0mm
- Depth
- 96.0mm
- Weight
- 207.0g
- Dimension for
- Other (details below)
- Dimensions details
- Mains Adaptor
- Packaged Dimensions
- 27.3cm(Length) x 10.0cm(Width) x 6.2cm(Height)
