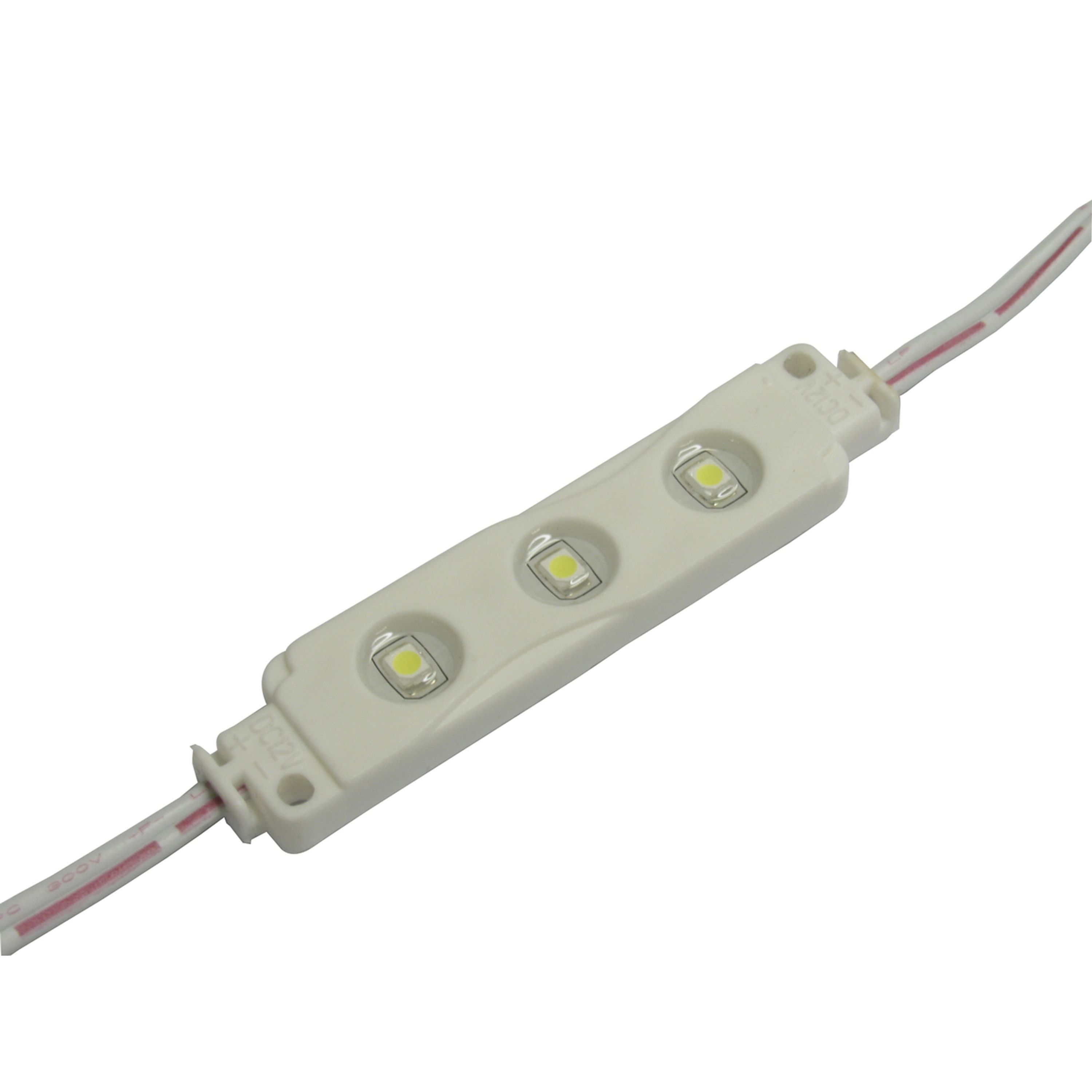

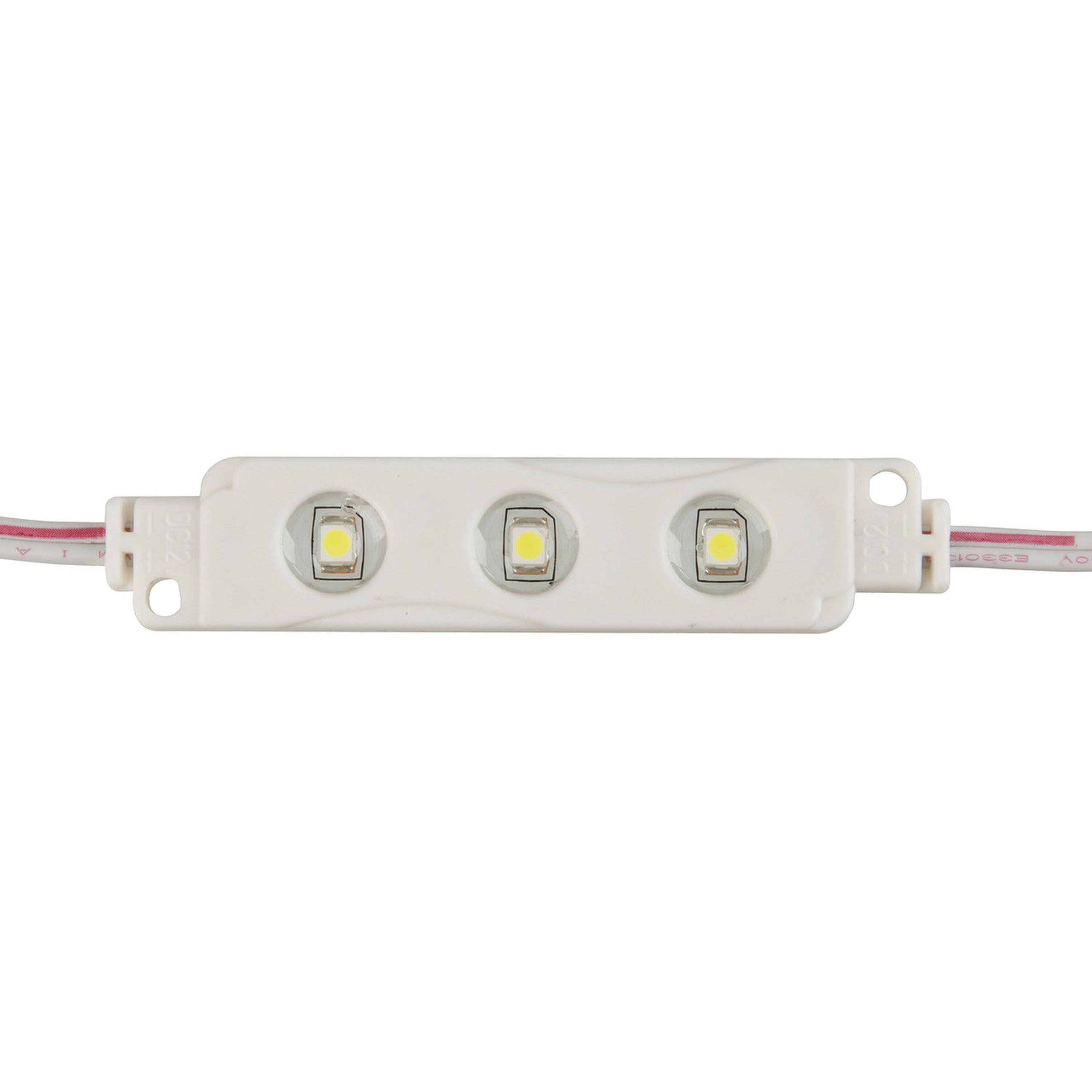

IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

Cat No:
ZD0590
Out of Stock

Unavailable

Description

A very flexible and weatherproof (IP65) solution for low power lighting; use for backlighting of signs, illuminating stairwells, marine lighting, caravan lighting, etc. Each string is supplied as a 1m length of wire, with ten modules containing three high brightness SMD LEDs along the length of the string. You can cut the string to supply power to each module separately if you wish, allowing for a whole host of different applications. Simply provide 12VDC power and you are in business. Available in standard 3528-LED or ultra-bright 5050-LED versions, and in cool white, warm white or blue colours depending on the model you chose

ZD-0590 IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

Features:
• Lumen output: 13.5lm per module (135 total)
• LEDs: 10x (3x3528)

Note: The wiring convention on this unit is slightly different. Connect positive to the white wire and negative to the red wire.

Specifications

Colour Temperature
6000.0K,6500.0K
LED Type
3528 SMD
Light Colour
Cool White
Viewing Angle
120.0°
V<sub>f (typ)</sub> - Typical Forward Voltage
12.0V
I<sub>f (typ)</sub> - Typical Forward Current
300.0mA
Length
71.0mm
Width
15.0mm
Height
5.5mm
Packaged Dimensions
14.0cm(Length) x 10.5cm(Width) x 2.0cm(Height)
