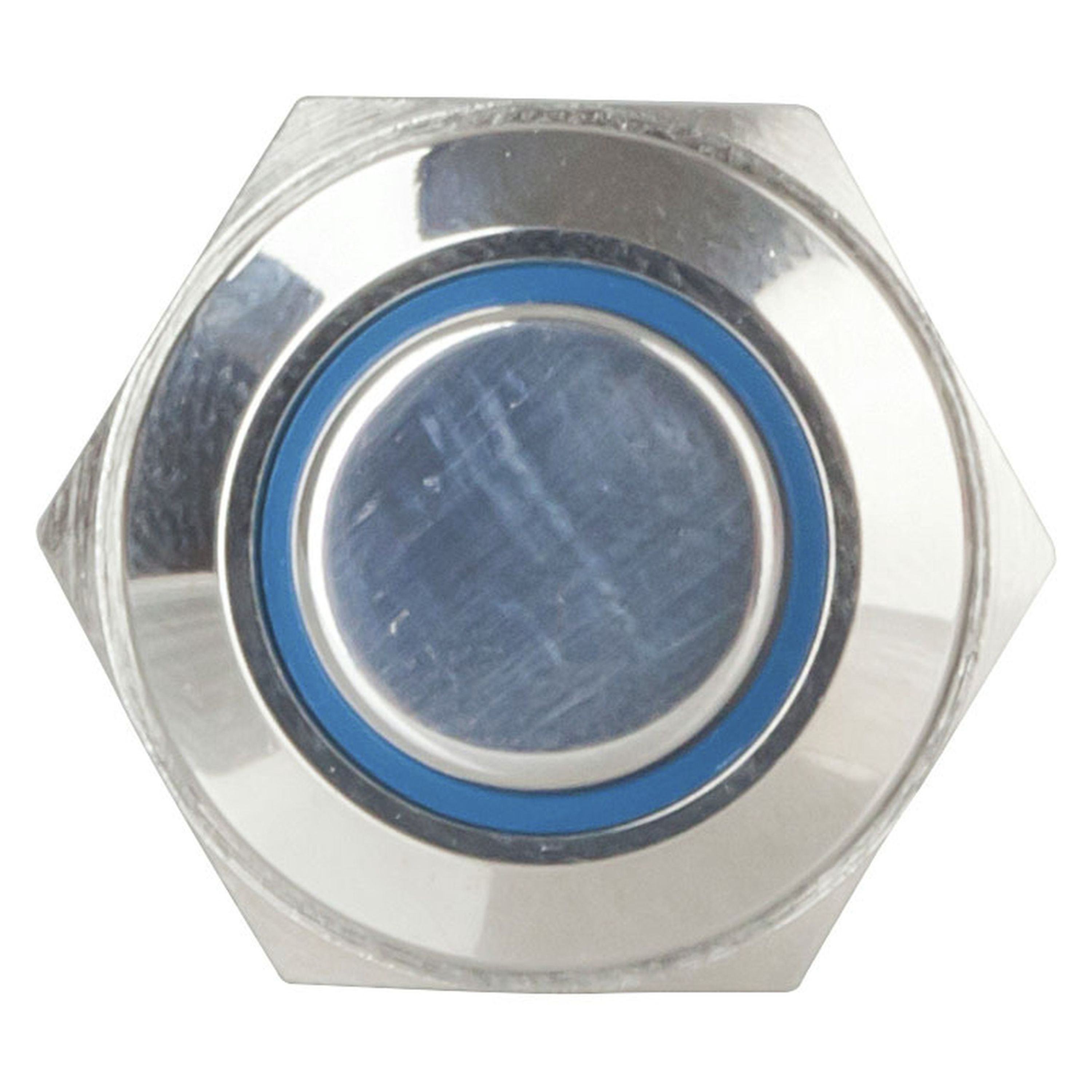

IP67 Blue Illuminated Momentary Switch
- Cat No:
- SP0798
Out of Stock
$23.95
Description
IP67 rated switch for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action. 12V LED illumination.
- IP67 Rated Illuminated Pushbutton Switch DPDT - Red Cat SP-0791
- IP67 Rated Illuminated Pushbutton Switch DPDT - Green Cat SP-0792
- IP67 Rated Illuminated Pushbutton Switch DPDT - Blue Cat SP-0793
- IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Red Cat SP-0796
- IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Green Cat SP-0797
- IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Blue Cat SP-0798
Specifications
- LED Type
- LED
- Switch Type
- Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 2.0 pos
- Switch Function
- Momentary
- Mechanism Material
- Metal
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Blue
- Pole Throw Type
- SPDT
- AC Voltage Rating
- 250.0V
- AC Current Rating
- 5.0A
- Illumination Colour
- Blue
- Nominal Voltage
- 12.0V
- LED Connection
- Spade Terminals
- Height
- 40.0mm
- Diameter
- 22.0mm
- Packaged Dimensions
- 4.0cm(Length) x 2.0cm(Width) x 2.0cm(Height)
