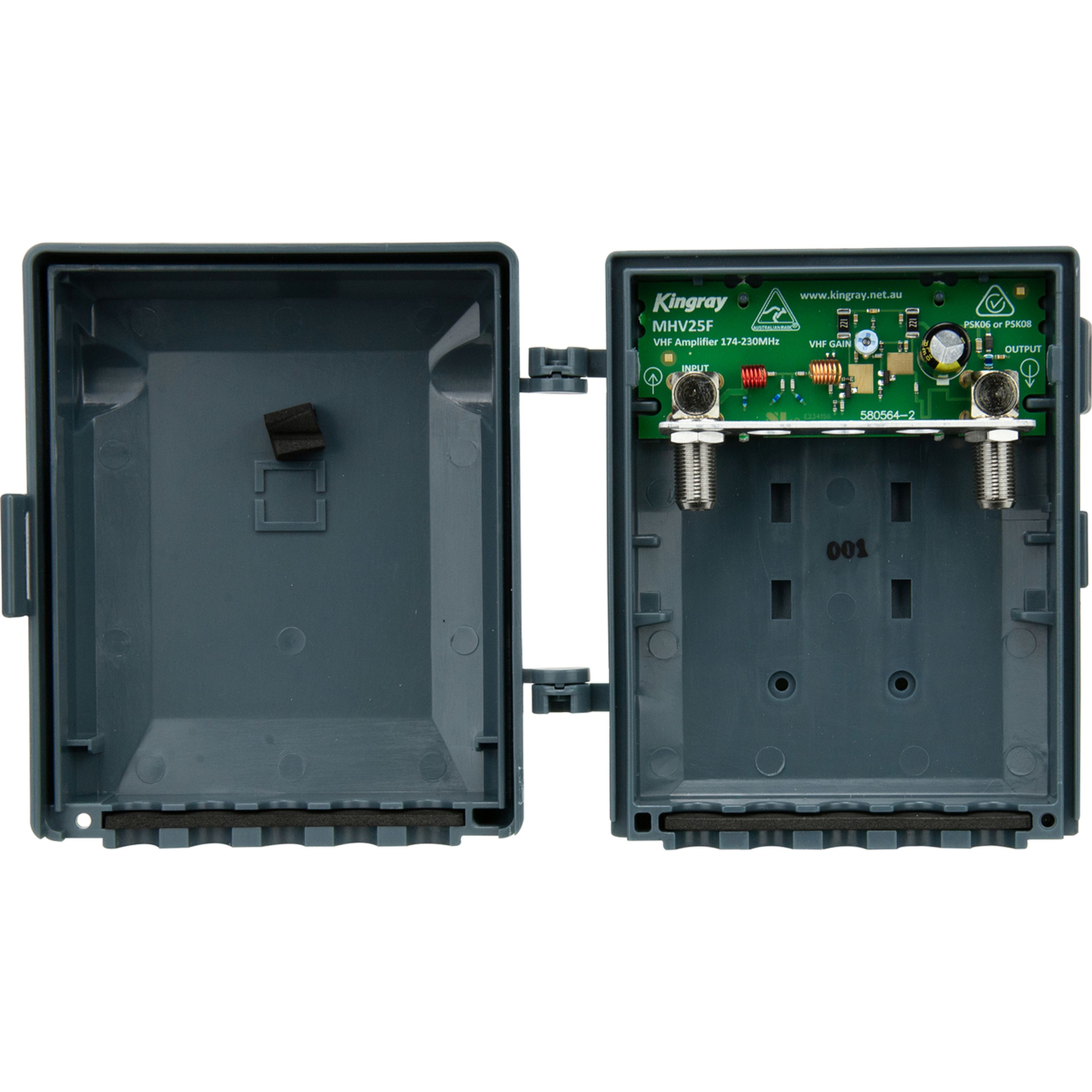

Kingray 25dB VHF Masthead Amplifier, Separate or Combined input with 4G/LTE filter

The MHV25F is a VHF TV masthead amplifier, specifically designed to work in areas where there is VHF transmission only. With band 1, 2, 4 and 5 filtering, it ensures ensure only channels 6 to 12 (174 MHz to 230 MHz) are amplified, eliminating all unwanted frequencies including those in the 4G/LTE band.

The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).

Key Features:
- Frequency Range 174-230 MHz
- 25dB Maximum Gain
- 10dB Gain Control
- Single VHF Input

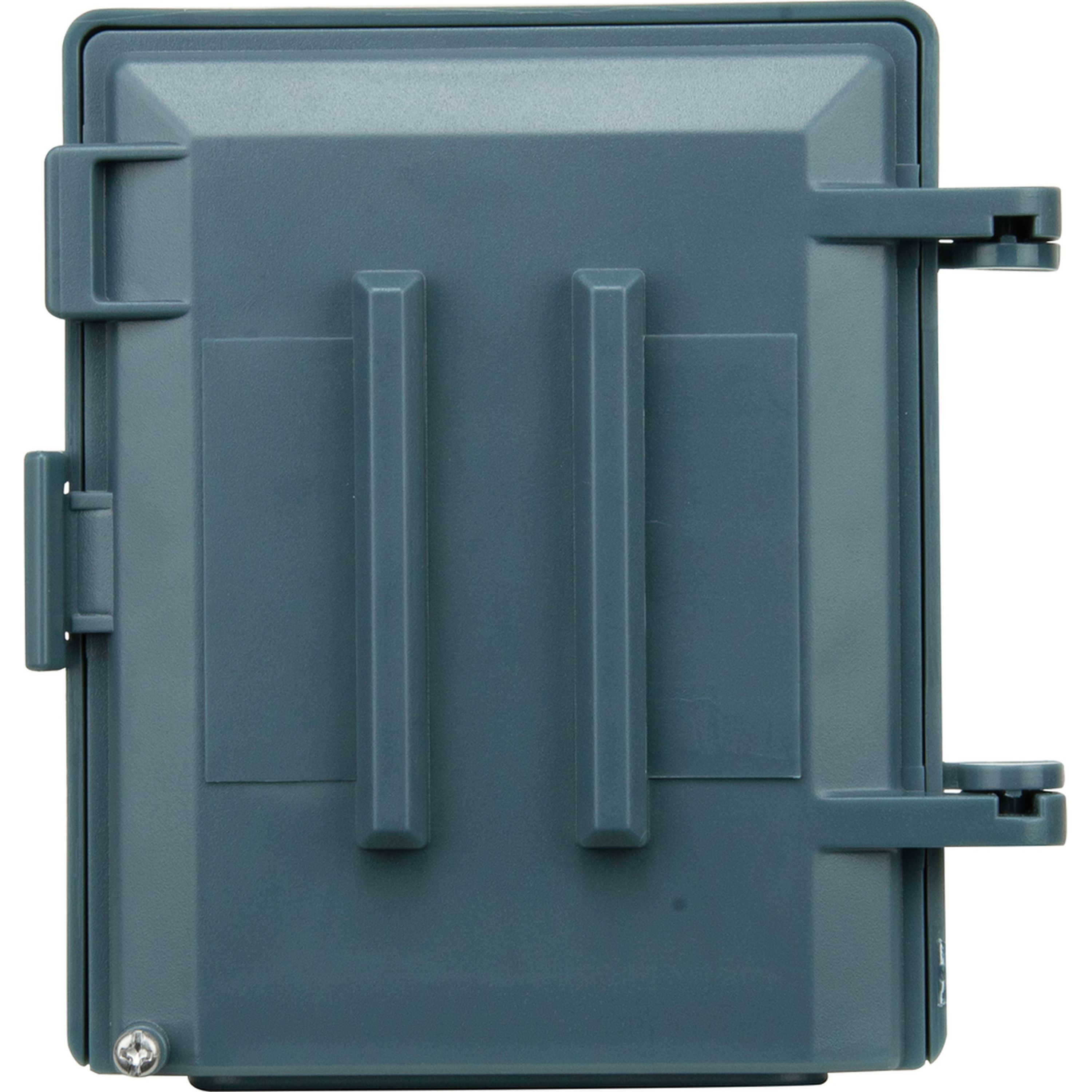

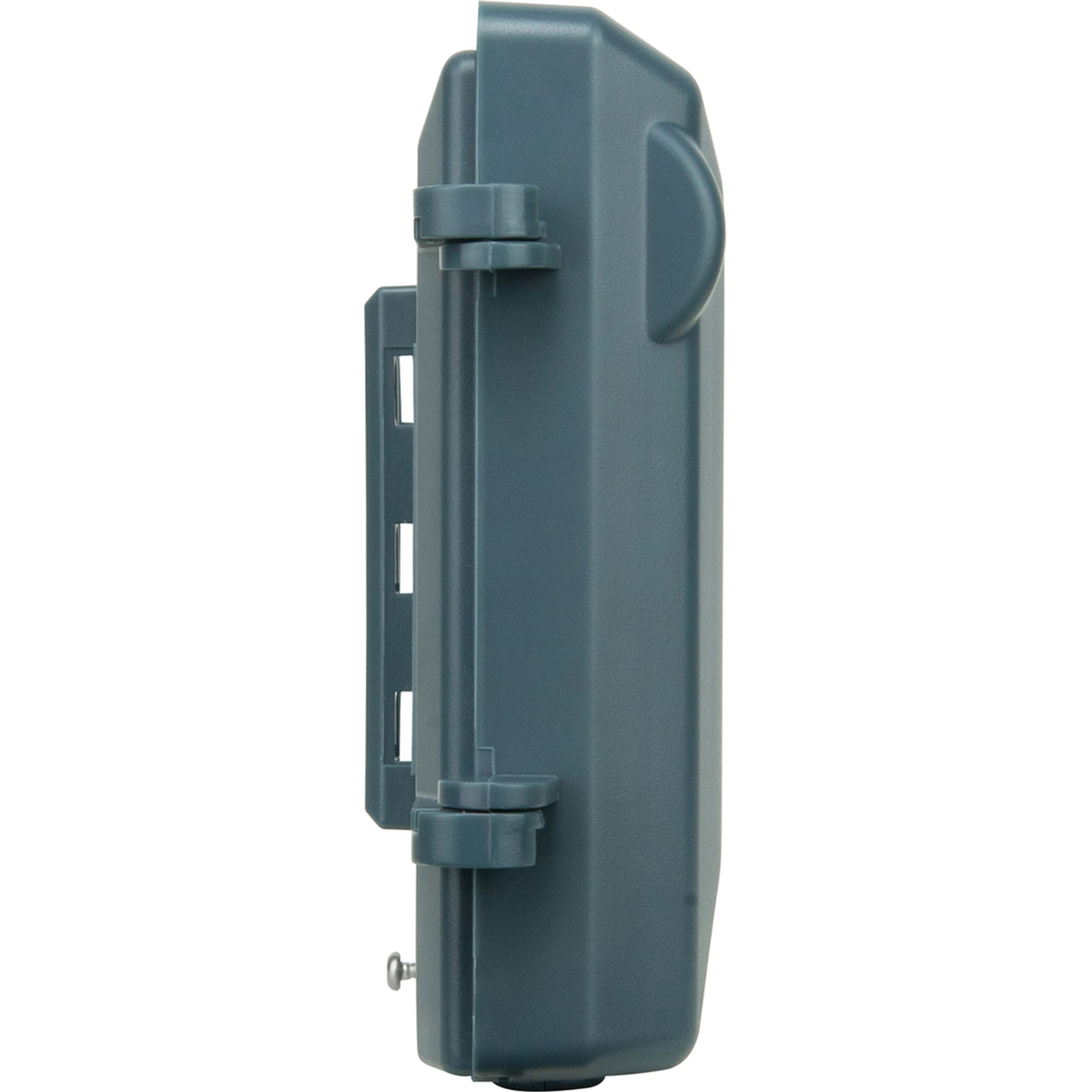

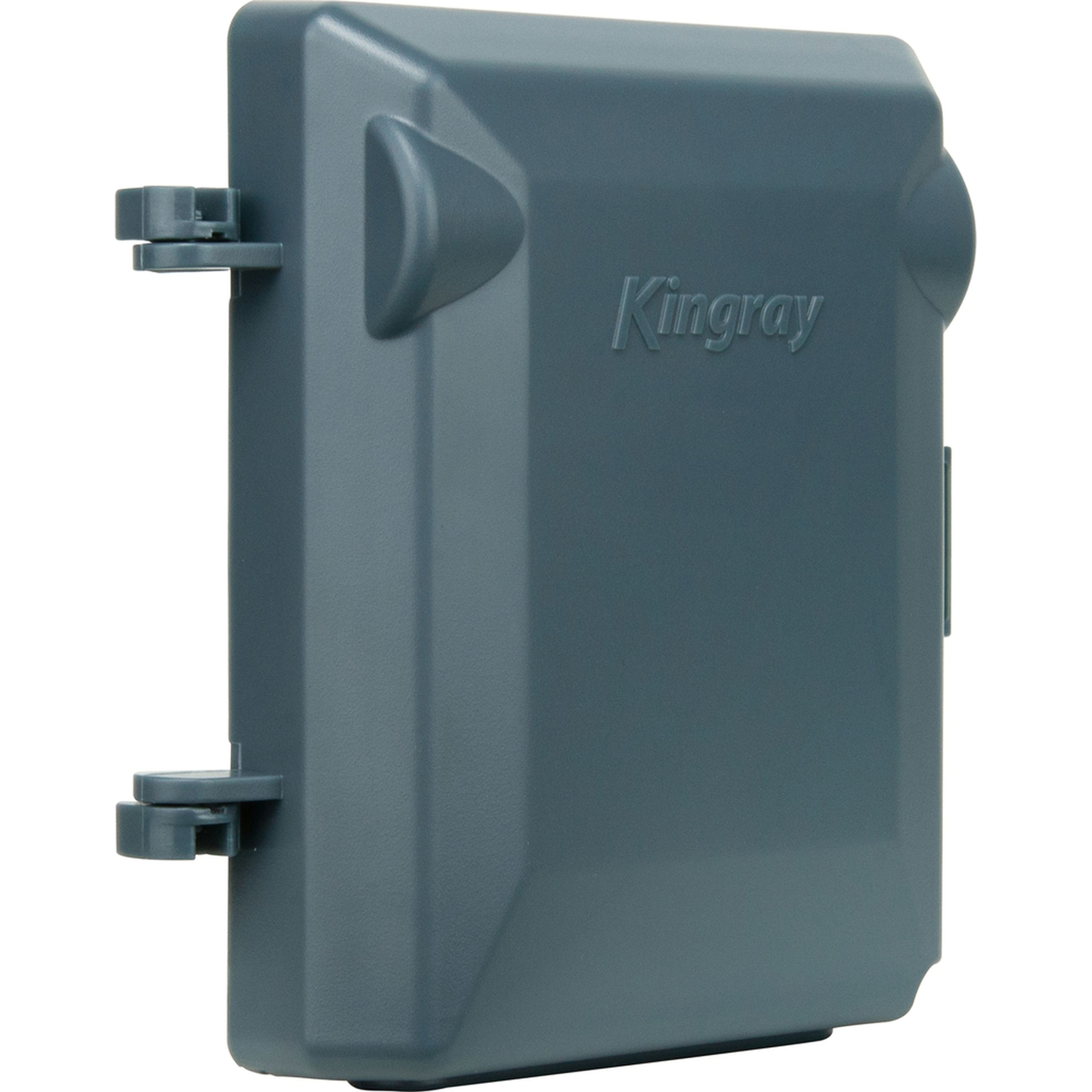

- Weatherproof Housing
- High Output Figure of 105dB IMR3 (DIN45004B)
- Connectors: F-Type
- Power Consumption: 60mA
- Suitable Power Supply: PSK06 Series or PSK08 Series
