Kingray

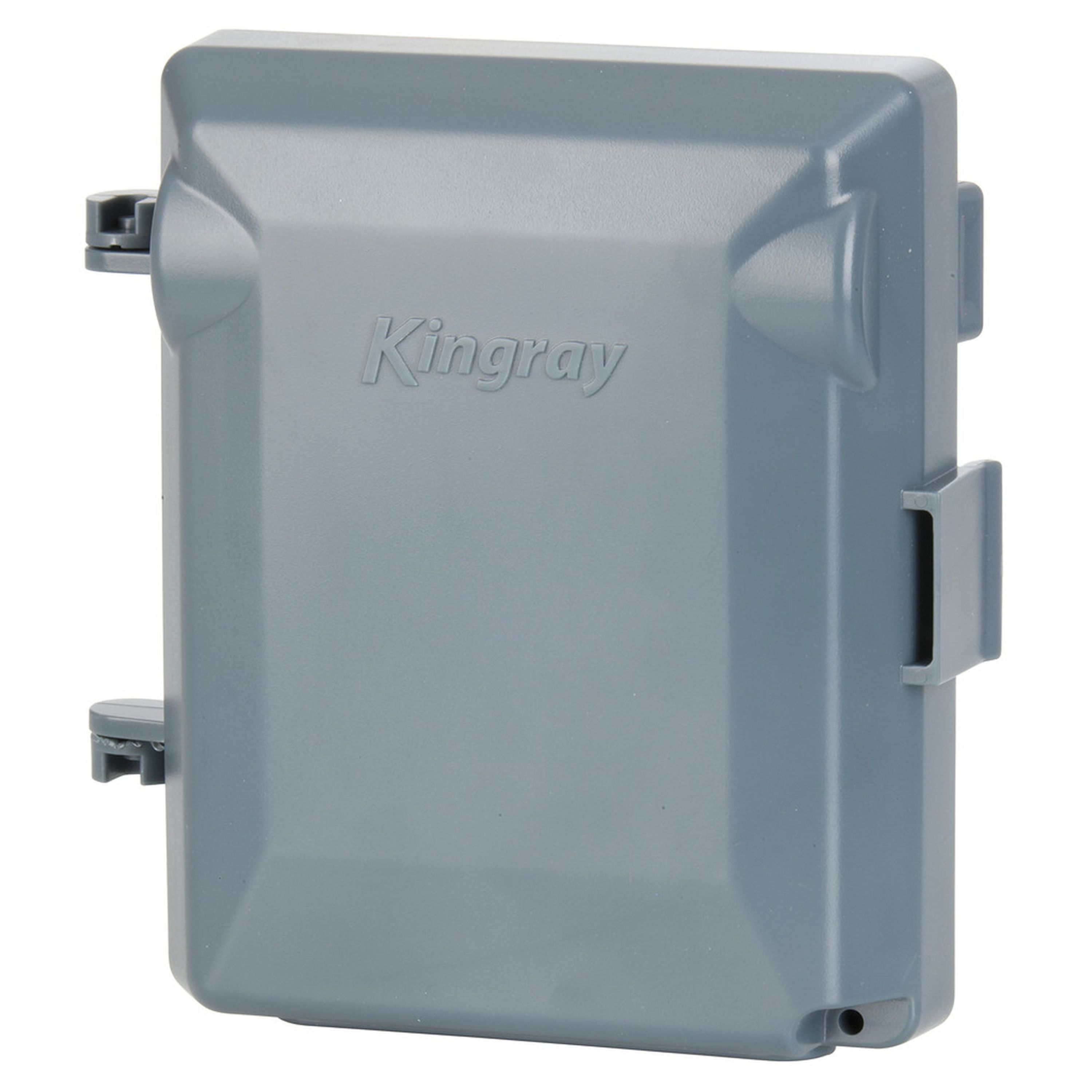

Kingray VHF/UHF Masthead Amplifier with LTE/4G Filters
- Cat No:
- LT3251
- MPN:
- MHW35FDP
Out of Stock
$129.00
Description
As you may be aware by now, a large chunk of the Australian TV broadcast spectrum is being reallocated for the next generation 4G/LTE mobile phone service. To guard against this, Kingray have produced this Australian made masthead amp that provides a good VHF & UHF TV band gain, and user selectable filters for FM radio, fixed pagers, and the new 4G/LTE band. Supplied with AC power injector and F-type to PAL adaptors. A fantastic product proudly made in Australia.
• FM pass option
• Selectable filters: FM, LTE, fixed pagers
• Combination and separate VHF & UHF Antenna inputs
• Suitable power supplies: LT-3256, LT-3258 or LT-3259
Includes PSK06F power supply.
• FM pass option
• Selectable filters: FM, LTE, fixed pagers
• Combination and separate VHF & UHF Antenna inputs
• Suitable power supplies: LT-3256, LT-3258 or LT-3259
Includes PSK06F power supply.
Specifications
- Amplifier Type
- Masthead
- UHF Gain
- 35.0dB-520.0dB
- VHF Gain
- 22.0dB-26.0dB
- UHF Frequency Range
- 520.0MHz-694.0MHz
- VHF Frequency Range
- 174.0MHz-230.0MHz
- UHF Gain Control
- 15.0dB
- VHF Gain Control
- 16.0dB-12.0dB
- UHF Noise Figure
- 2.1dB
- VHF Noise Figure
- 3.5dB
- Packaged Dimensions
- 14.5cm(Length) x 6.0cm(Width) x 22.5cm(Height)
