LED Voltmeter 5-15VDC with Bar Graph
- Cat No:
- QP5589
In Stock
$43.95
Description

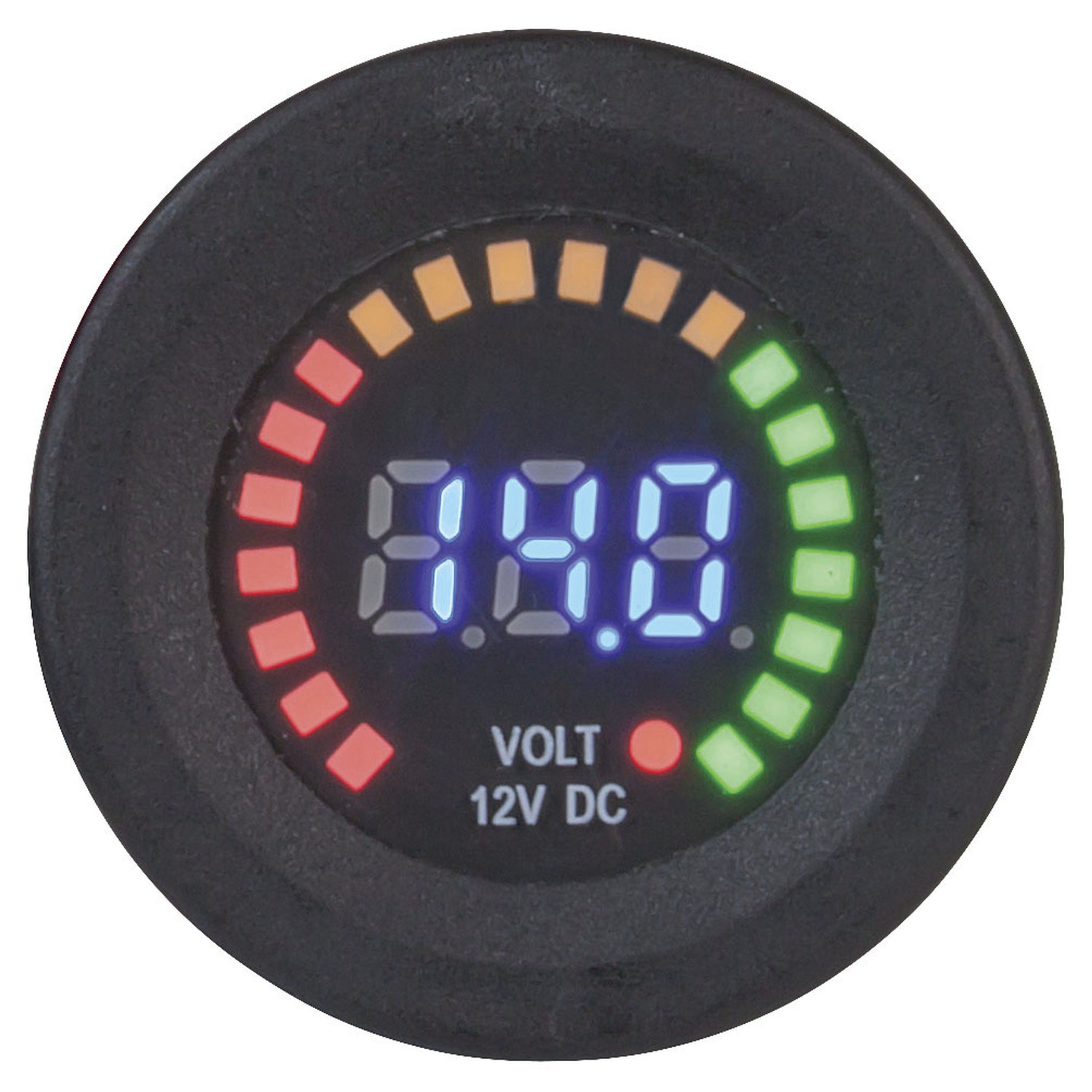

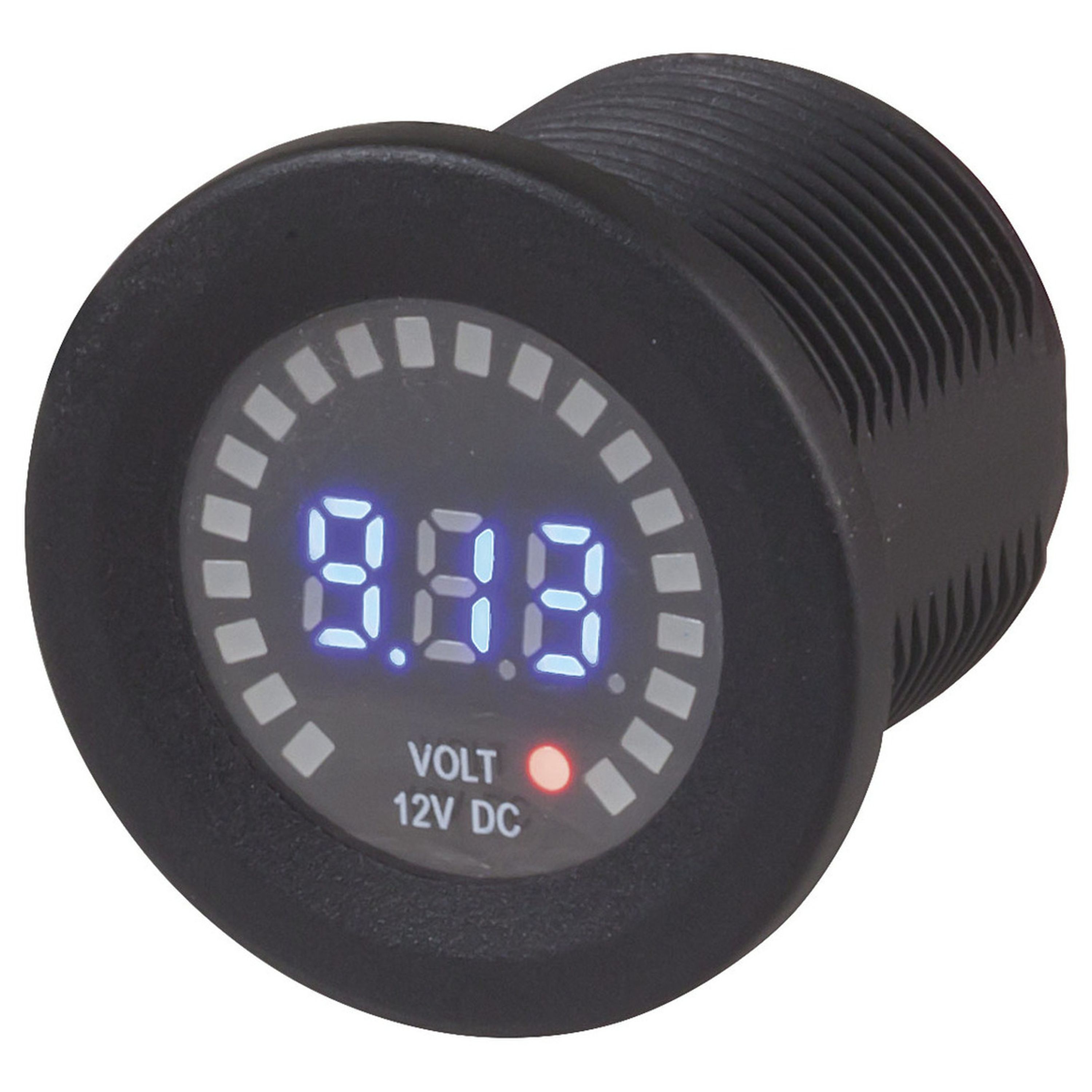

A quick and simple way to monitor the battery voltage in a vehicle, this voltmeter simultaneously shows the voltage numerically and on a bar graph. Simply wire up to a DC power source between 5-15VDC, and the blue LED voltmeter displays the voltage. The colour coded LED bar graph shows the voltage level on a scale from 11.3 to 13.2 volts, optimal for vehicle battery condition.
• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules
Specifications
- DC Volts Measurement Range
- 15.0V,15.0V
- Digits Displayed
- 3.0digit
- Display Type
- LED
- Display Backlight
- Blue LED Backlit
- Bargraph
- true
- Dimensions for
- Including Bracket
- Dimension details
- Panel Mounting
- Width
- 60.0mm
- Height
- 42.0mm
- Dimension for
- Including Bracket
- Dimensions details
- Under Dash / Surface Mount Hood
- Width
- 55.0mm
- Height
- 50.0mm
- Depth
- 80.0mm
- Dimensions for
- Without Bracket
- Dimension details
- Voltmeter Module
- Depth
- 40.0mm
- Diameter
- 36.0mm
- Packaged Dimensions
- 18.0cm(Length) x 8.1cm(Width) x 5.4cm(Height)
