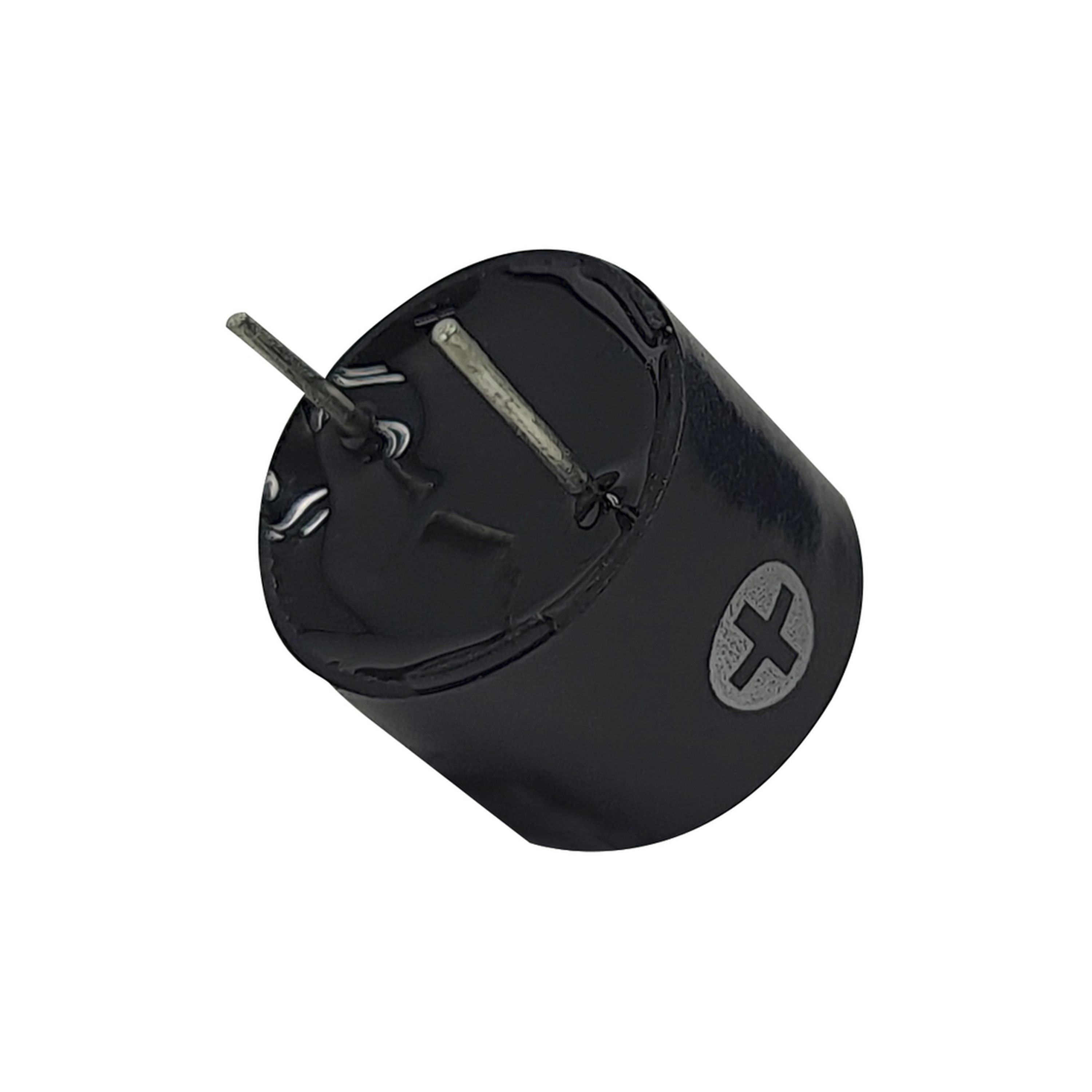

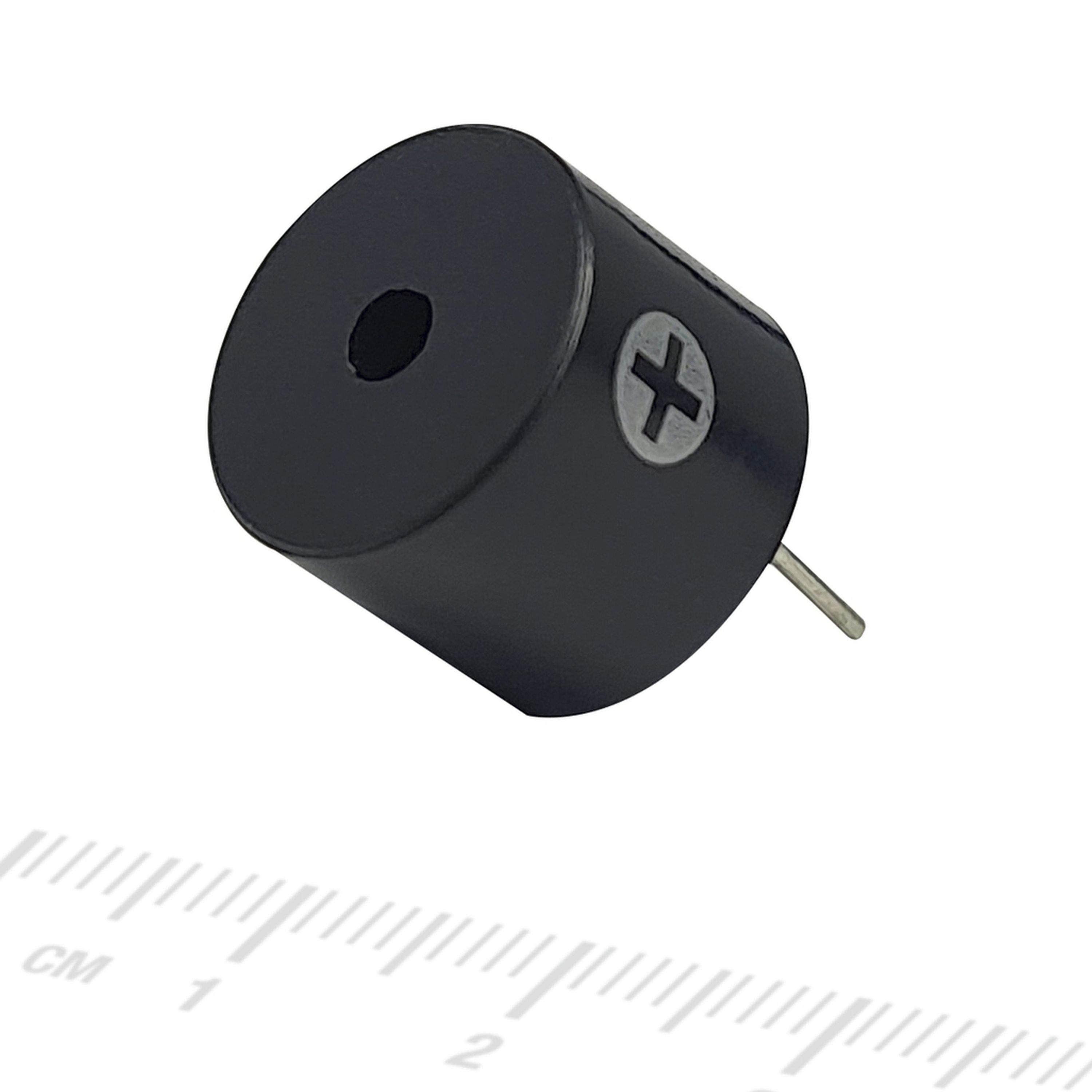

Mini PCB Mount Buzzer 9-14VDC
- Cat No:
- AB3459
In Stock
$4.95
Description
This buzzer is ideal when you need to fit a buzzer in a small place. It has its own built- in drive circuit. It offers low current consumption and its sealed for DIP soldering and washing. Used in manufacturing applications such as - laptops, alarms, pagers, etc. Operating Temp: -20° to +65°C
Specifications
- Buzzer Type
- Electromechanical
- Rated Voltage
- 12.0
- Buzzer Current
- 30.0mA
- Buzzer Frequency
- 2300.0Hz
- Sound Pressure Level
- 85.0dB
- buzzer mount
- PCB
- Buzzer Operating Voltage
- 14.0V,14.0V
- Height
- 9.5mm
- Diameter
- 12.0mm
- Weight
- 2.4g
- Dimensions details
- Pin Spacing
- Width
- 7.6mm
- Packaged Dimensions
- 1.0cm(Length) x 1.0cm(Width) x 1.5cm(Height)
