Protech

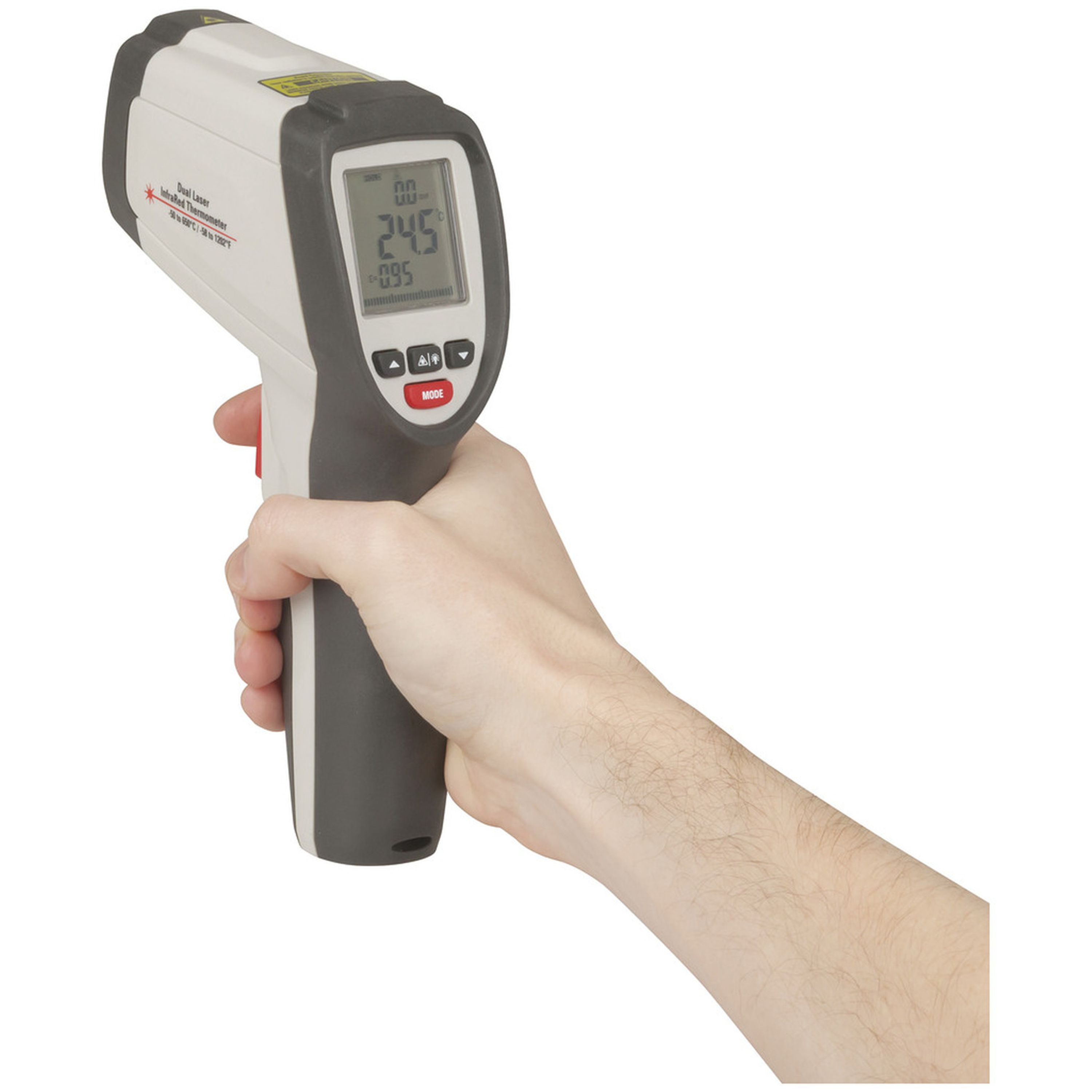

Non-Contact Thermometer with Dual Laser Targeting

Cat No:
QM7420
Sold as:1 Each
In Stock

$129.00

Description

Safely measure temperatures from -40°C up to 650°C in hard to reach places, and hot or hazardous areas. The circular laser targeting from the two built-in lasers and 16:1 distance to spot ratio provides more accurate and repeatable measurements. The rugged design with IP54 rating offers protection against dust and water. Features include min, max, average, difference temperature displays, data hold, and high and low alarms with backlight. It has a large white backlit LCD, a rapid response time of less than 150ms, and a digitally adjustable emissivity from 0.1 to 1.0, which helps improve accuracy depending on the materials you are measuring. Supplied in a carry case.

Please note this unit only measures surface temperature not internal body temperatures.

Features:
• -40 to 650°C
•  Rapid detection function
•  Built-in dual laser pointer
•  16:1 Distance to spot ratio
•  Automatic data hold
•  Max/min function
•  Emissivity Digitally adjustable from 0.10 to 1.0
•  MAX, MIN, AVG, DIF temperature displays
•  High and Low alarms with red backlight
•  Class 2 laser product

Specifications:
Repeatability: ± 0.8%  or ±2°F(1°C) (used the max reading)
Response Time: Less than 150ms
Spectral Response: 8~14um
Over Range Indication: LCD will show “----”
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity

Accuracy:
                -40 ~ 0°C: (± 2°C + 0.2°C Per degree)
                 0~650°C: ± (1.5°C) OR ± 1.5%

Specifications

Special Features
Dual Laser Targeting
Display Type
LCD
Display Backlight
LED Backlit
Battery used for
Main Product
Size / Shape
9V
Type
Alkaline
Battery quantity
1pc
Indoor / Interior Scale
-40°C - 650°C
Celcius Accuracy
2%
Indoor / Interior Scale
-40°F - 1°F
Fahrenheit Accuracy
3.6%
Thermometer Resolution
0.1°C
Emissivity
0.1  - 1
Width
110mm
Height
190mm
Depth
55mm
Weight
280g
Packaged Dimensions
20 x 12.5 x 6 cm
Colour of Laser
Red
Max Laser Power
1mW
Colour wavelength
670nm, 670nm
Beam spread
630°, 630°, 630°, 630°

Downloads
