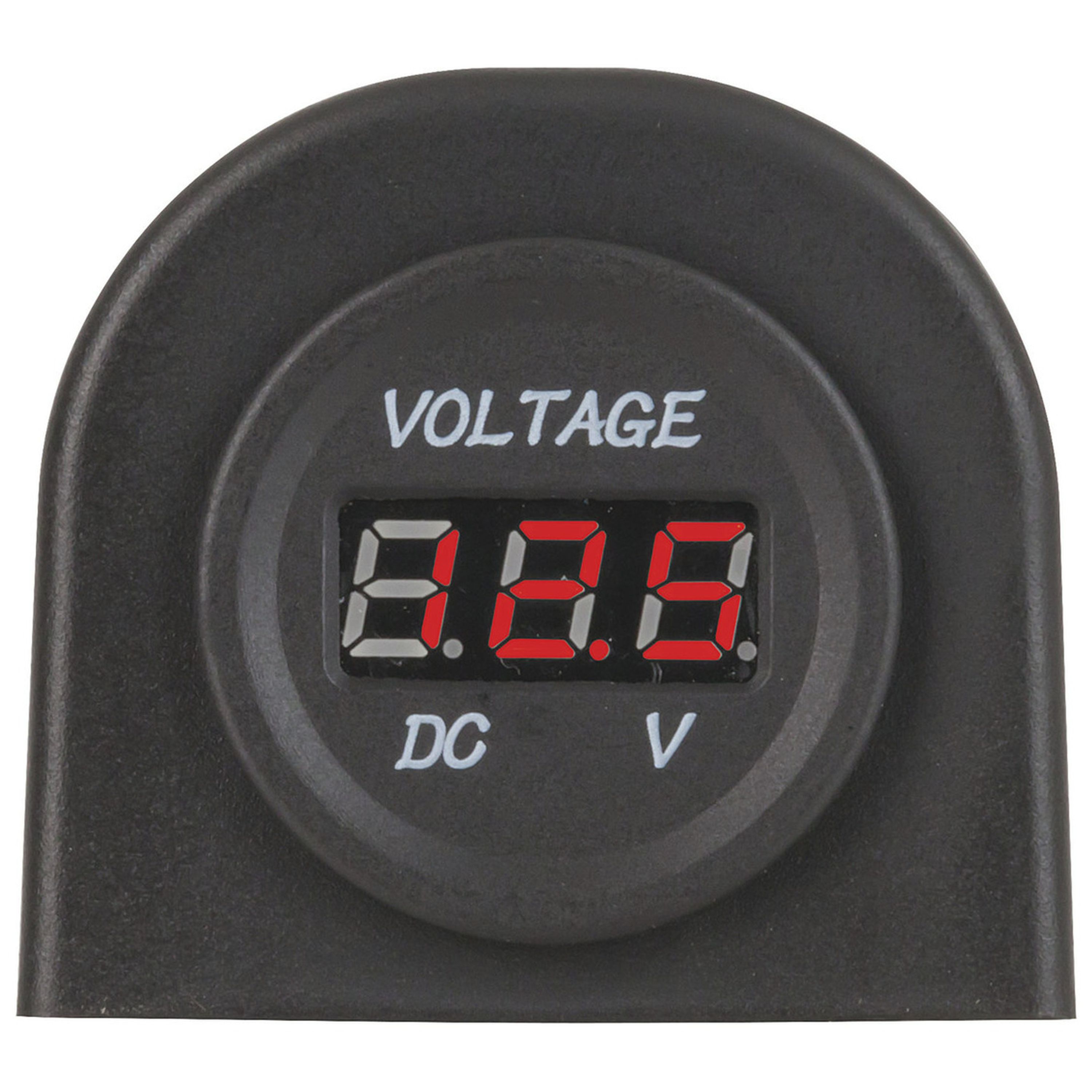

Panel/Surface Mount LED Voltmeter 5-30VDC
- Cat No:
- QP5582
In Stock
$29.95
Description
Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).

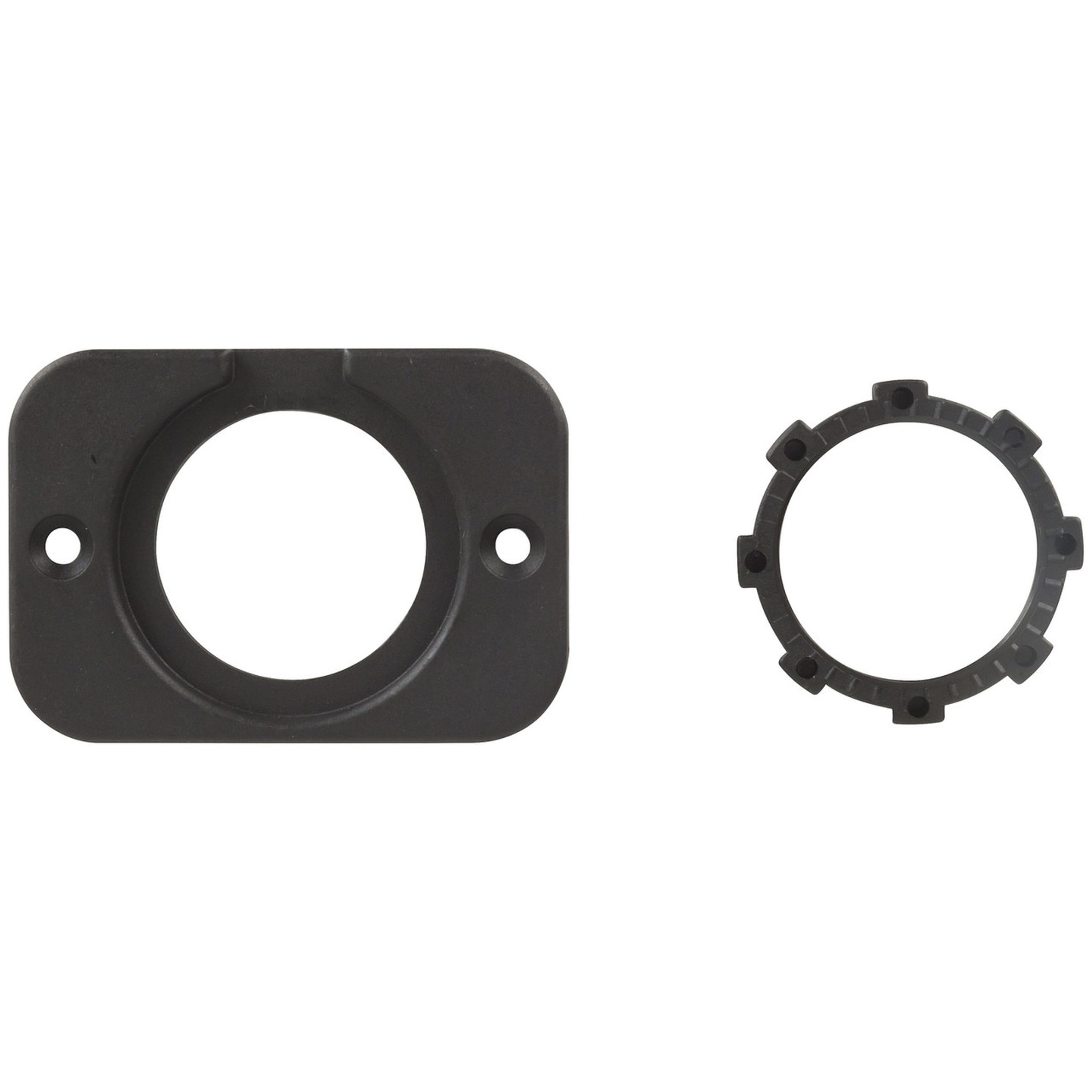

• Supplied with brackets for panel or surface mounting

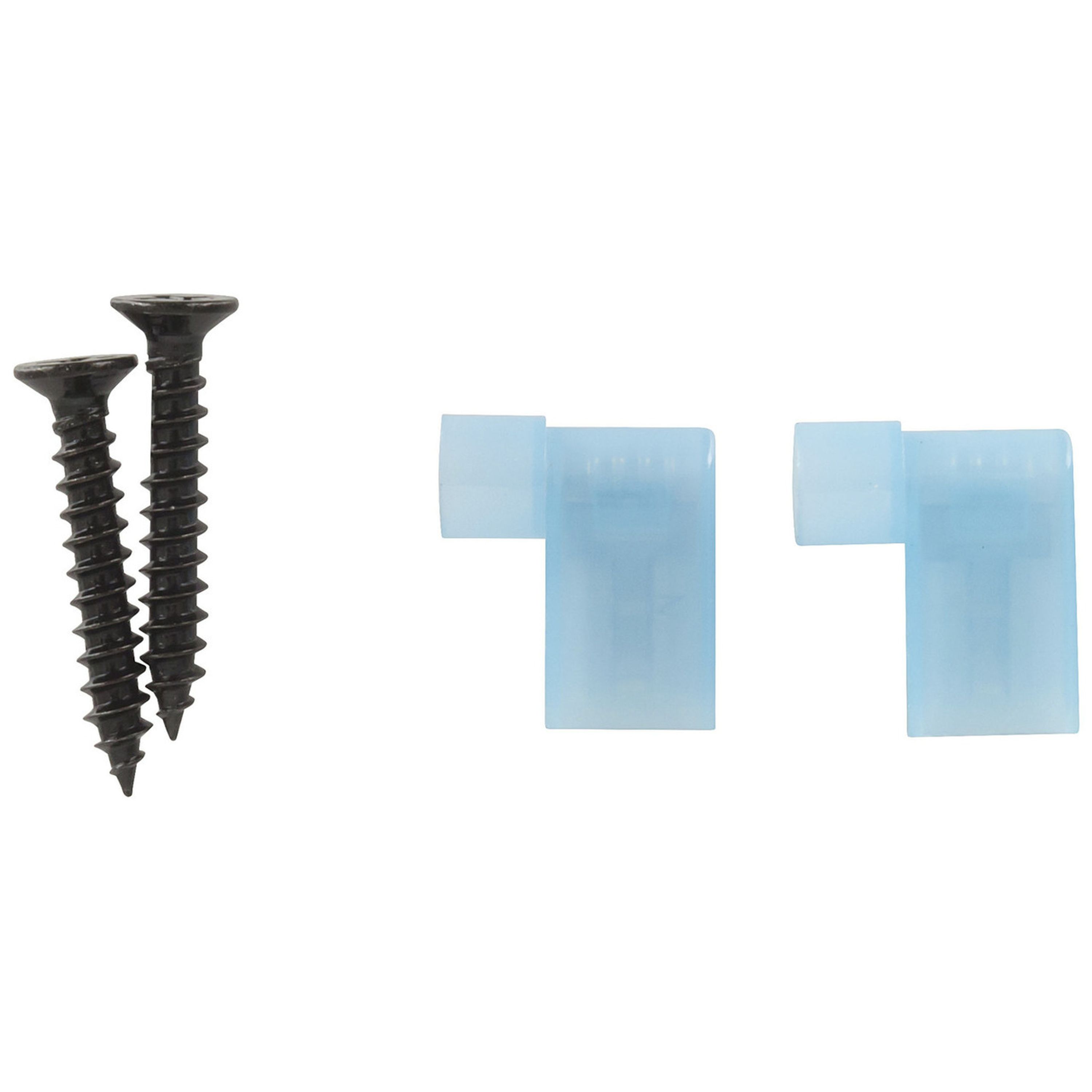

• Connection is via 6.3mm spade terminals
• Also available with additional modules
Specifications
- DC Volts Measurement Range
- 30.0V,30.0V
- Display Type
- LED
- Display Height
- 36.0mm
- Display Width
- 26.0mm
- Display Backlight
- Red LED Backlit
- Bargraph
- false
- Dimensions for
- Including Bracket
- Dimension details
- Panel Mounting
- Width
- 60.0mm
- Height
- 42.0mm
- Dimension for
- Including Bracket
- Dimensions details

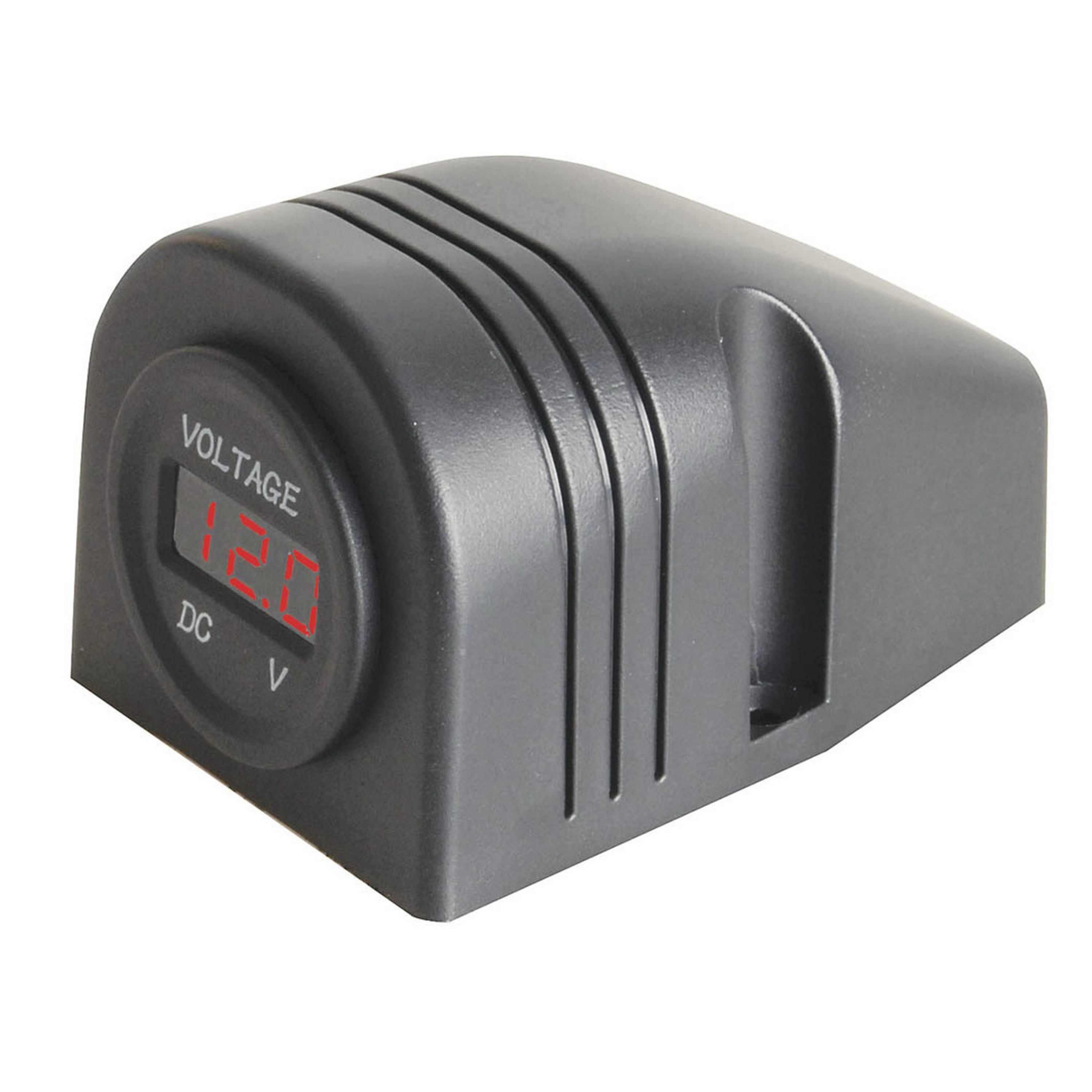

- Under Dash / Surface Mounting Hood
- Width
- 55.0mm
- Height
- 50.0mm
- Depth
- 80.0mm
- Dimensions for
- Without Bracket
- Dimension details
- Voltmeter module
- Depth
- 40.0mm
- Diameter
- 36.0mm
- Packaged Dimensions
- 11.0cm(Length) x 6.5cm(Width) x 5.5cm(Height)
