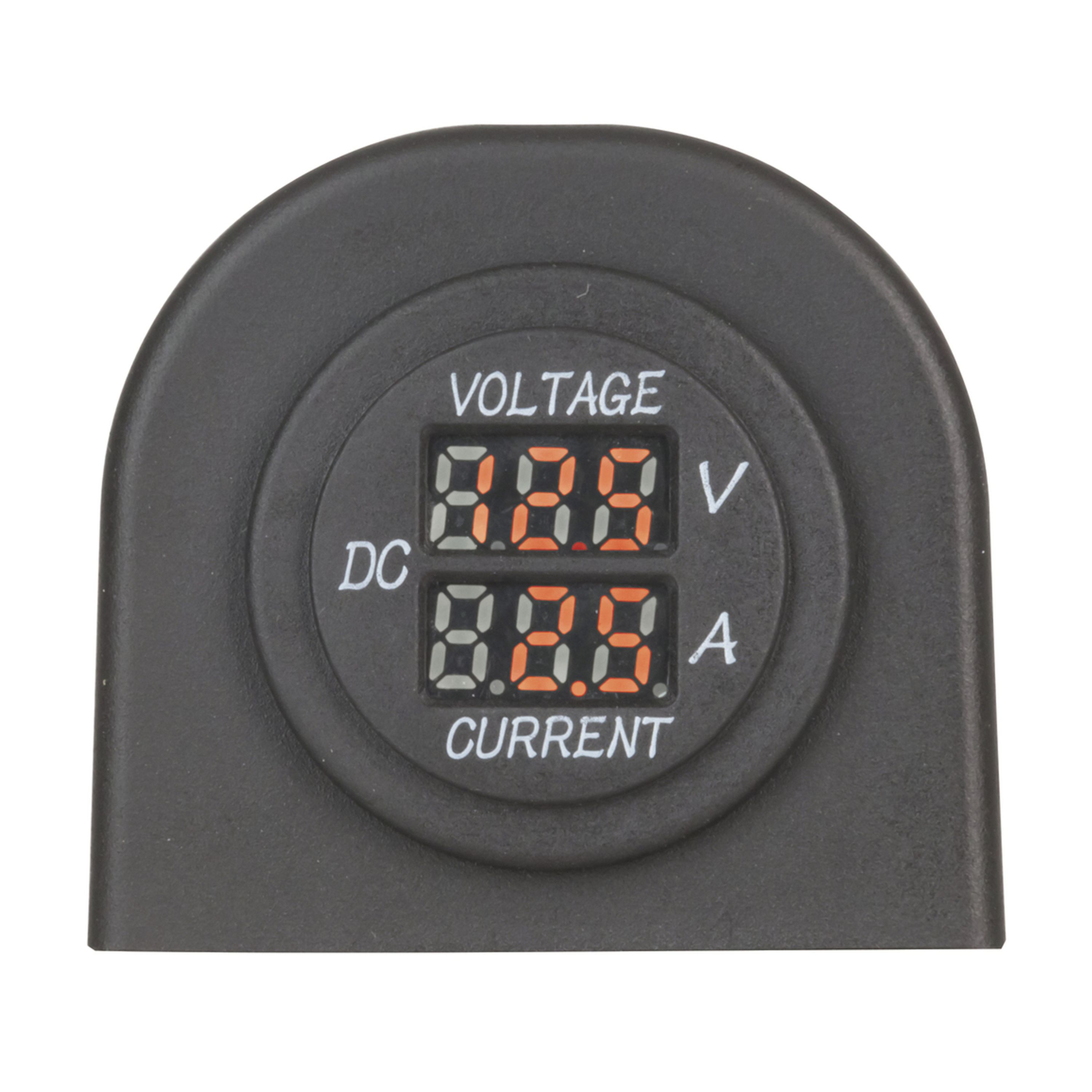

Panel/Surface Mount LED Voltmeter and Ammeter
- Cat No:
- QP5584
In Stock
$43.95
Description
Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.
• Supplied with brackets for panel or surface mounting
• Connection is via three 6.3mm spade terminals (current shunt in-built)
How to connect it:
Connect Battery + to + terminal on Ammeter, and also direct to your Load +.
Connect Battery - to - terminal on Ammeter.
Connect Load - to middle terminal on Ammeter
Specifications
- Dimensions for
- Including Bracket
- Dimension details
- Panel Mounting
- Width
- 60.0mm
- Height
- 42.0mm
- Dimension for
- Including Bracket
- Dimensions details
- Under Dash / Surface Mount Hood
- Width
- 55.0mm
- Height
- 50.0mm
- Depth
- 80.0mm
- Dimensions for
- Without Bracket
- Dimension details
- Voltmeter/ammeter module
- Depth
- 40.0mm
- Diameter
- 36.0mm
- Packaged Dimensions
- 17.9cm(Length) x 8.1cm(Width) x 5.3cm(Height)
