PCB Mount Solid State DIL Relay
- Cat No:
- SY4090
In Stock
$6.95
Description
Able to be triggered from low currents, and a super small package. Low on resistance and very low quiescent current.
Features:
Must Release Current: 0.4mA
Must Operate Current: 5mA
Maximum Load Voltage: 50VDC
Maximum Load Current: 2AMP
On-State Resistance: 0.1Ω
Off-State Leakage: 100nA

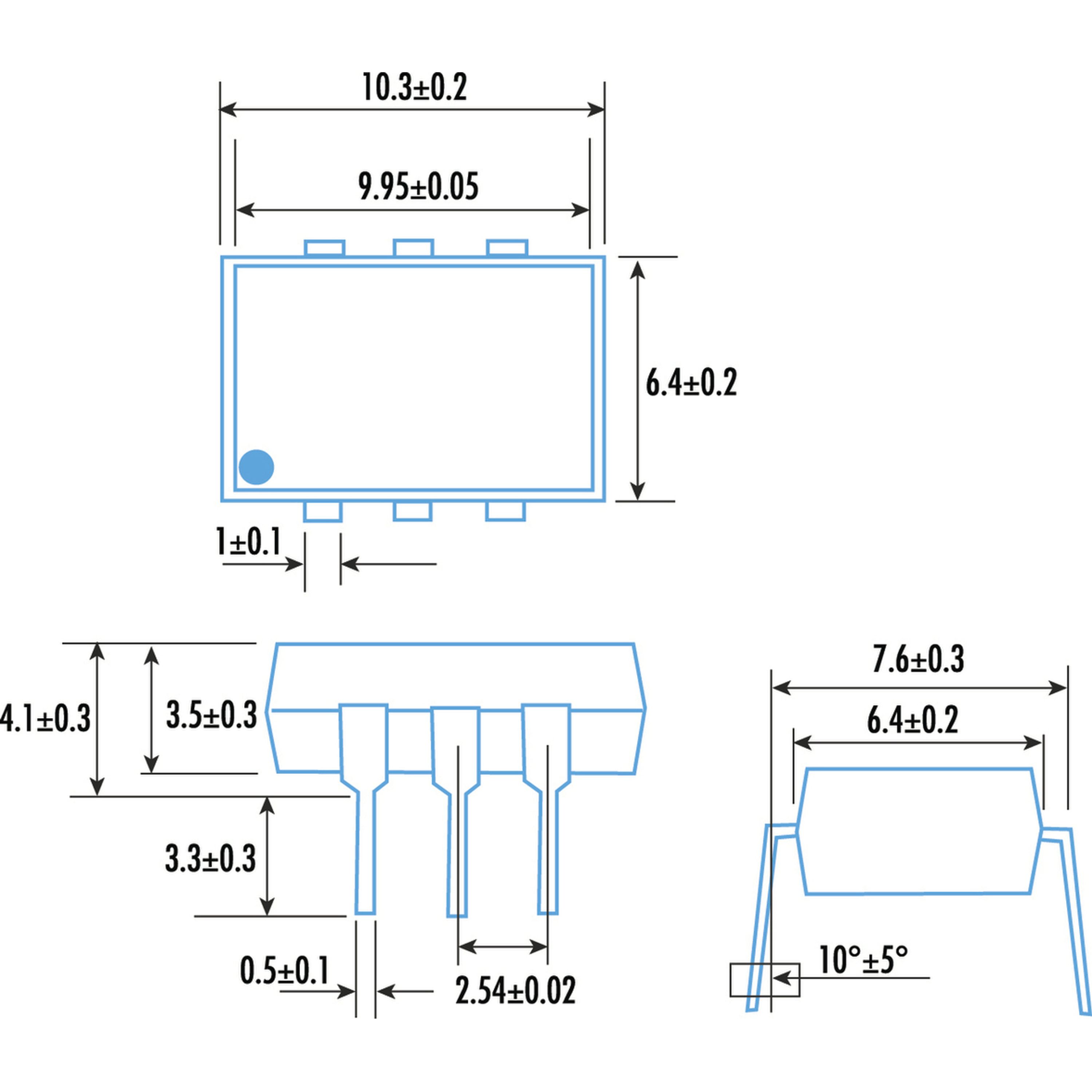

Package: 6 pin DIL
Features:
Must Release Current: 0.4mA
Must Operate Current: 5mA
Maximum Load Voltage: 50VDC
Maximum Load Current: 2AMP
On-State Resistance: 0.1Ω
Off-State Leakage: 100nA
Package: 6 pin DIL
Specifications
- Device Type
- Solid State Relay
- Input
- DC
- DC Contact Voltage
- 50.0V,50.0V
- DC Contact Current Rating
- 2.0A
- DC Switching Current (Closing)
- 5.0mA,50.0mA
- Operation Time
- 1.5ms
- Release Time
- 1.0ms
- DC Voltage
- 60.0V
- Packaged Dimensions
- 1.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
