PCB Mount Solid State Relay 5V
- Cat No:
- SY4092
In Stock
$9.95
Description
Low profile PCB mounting solid state relays with LED input status indication. Suitable for applications such as I/O interfaces and programmable logic controllers.
Features:
Control voltage range:4 - 6VDC
Max. input current: 20mA
Load voltage: 3 - 52.8VDC
Load current: 0.01 - 2ASY-4092
Control voltage range:4 - 6VDC
Four types available:
SY-4092: PCB Mount Solid State Relay 5V
SY-4093: PCB Mount Solid State Relay 12V
SY-4096: PCB Mount Solid State Relay 12V Zero Crossing Turn On
SY-4097: PCB Mount Solid State Relay 12V Random Turn On
Features:
Control voltage range:4 - 6VDC
Max. input current: 20mA
Load voltage: 3 - 52.8VDC
Load current: 0.01 - 2ASY-4092
Control voltage range:4 - 6VDC
Four types available:
SY-4092: PCB Mount Solid State Relay 5V
SY-4093: PCB Mount Solid State Relay 12V
SY-4096: PCB Mount Solid State Relay 12V Zero Crossing Turn On
SY-4097: PCB Mount Solid State Relay 12V Random Turn On
Specifications
- Device Type
- Solid State Relay
- Input
- DC
- Contact format
- SPDT
- Nominal Voltage
- 5.0V
- DC Contact Voltage
- 4.0V,6.0V
- DC Switching Current (Opening)
- 2.0A
- DC Voltage
- 4.0V
- DC Current Draw
- 2.0A

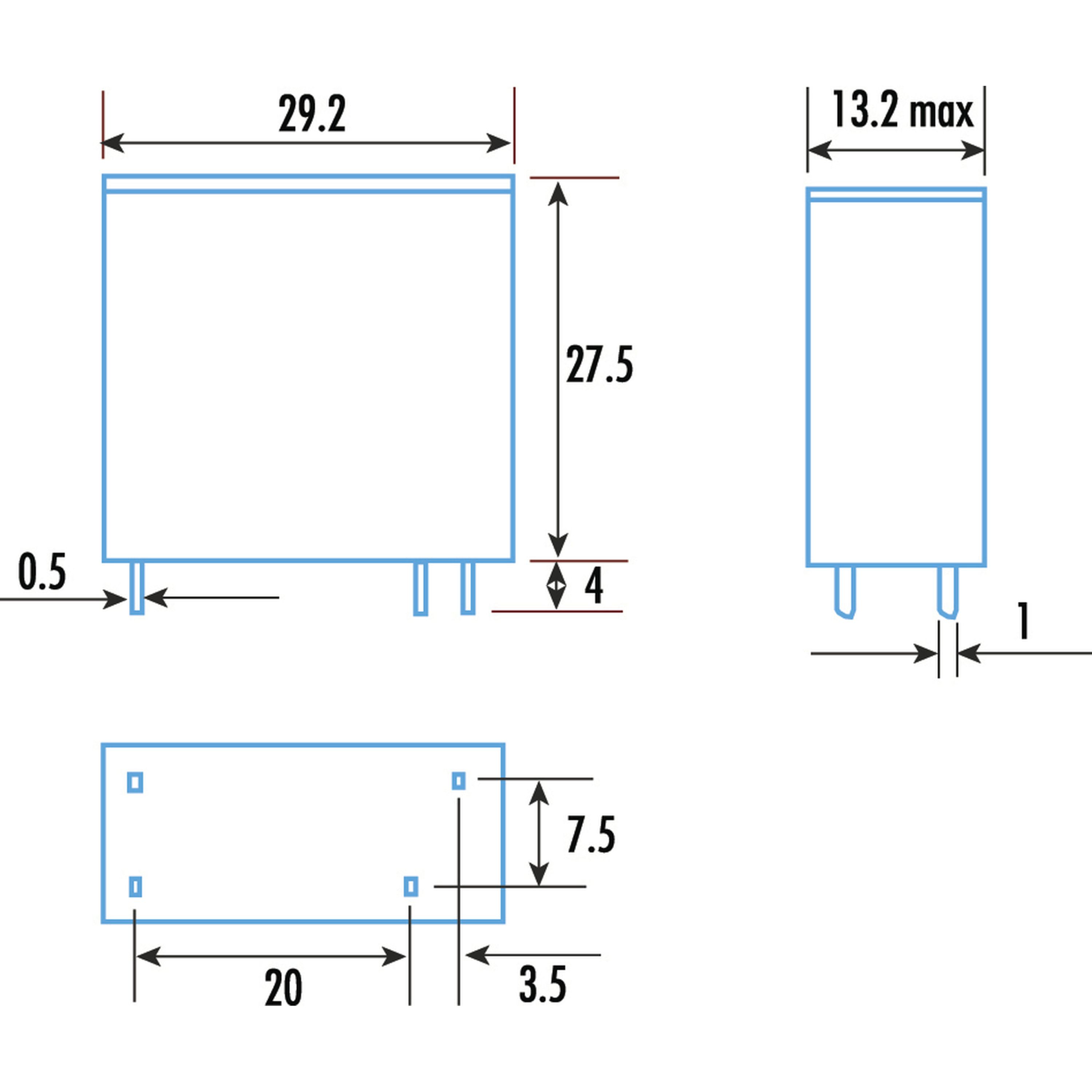

- Packaged Dimensions
- 3.0cm(Length) x 3.1cm(Width) x 1.5cm(Height)
