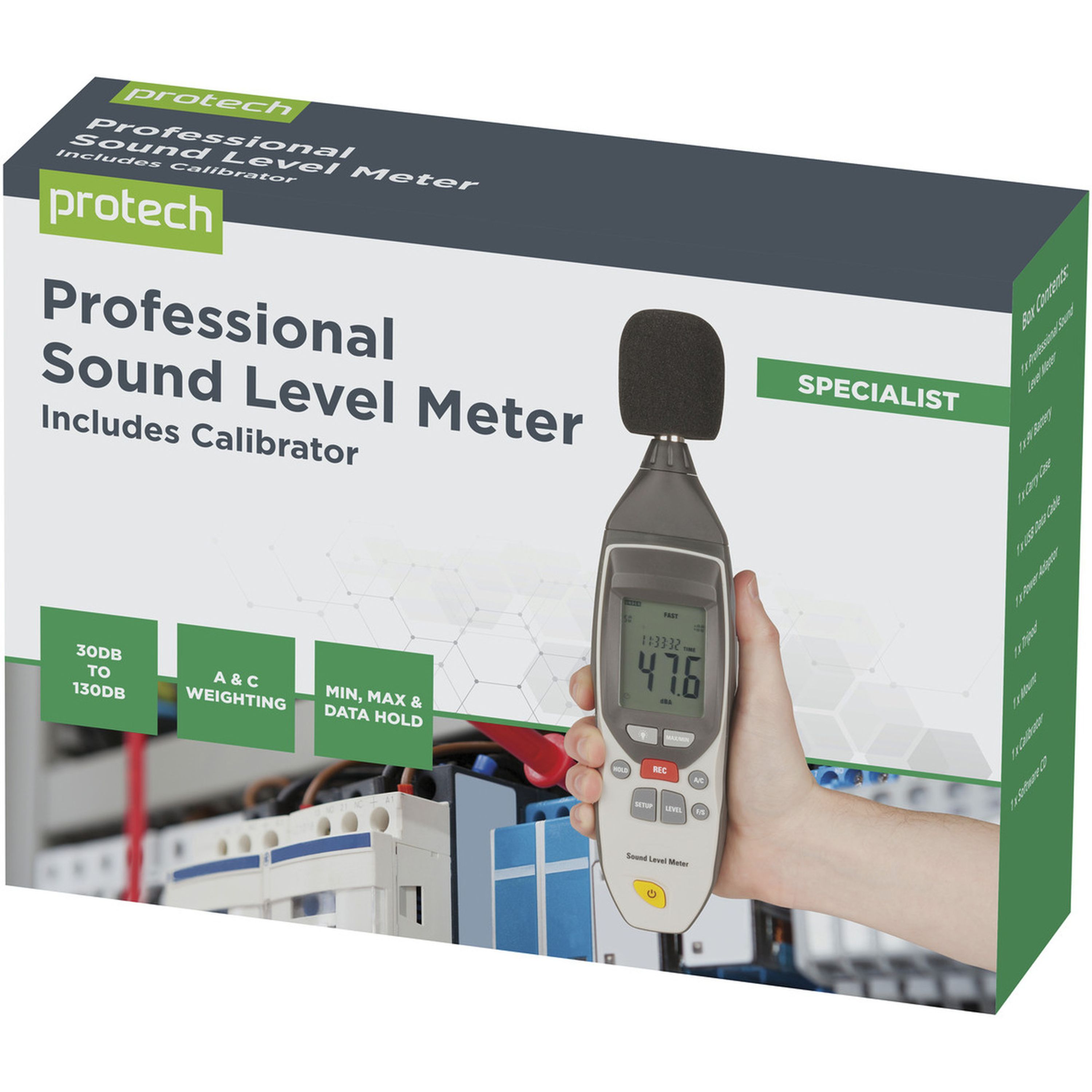

Pro Sound Level Meter with Calibrator

Cat No:
QM1598
In Stock

$359.00

Description

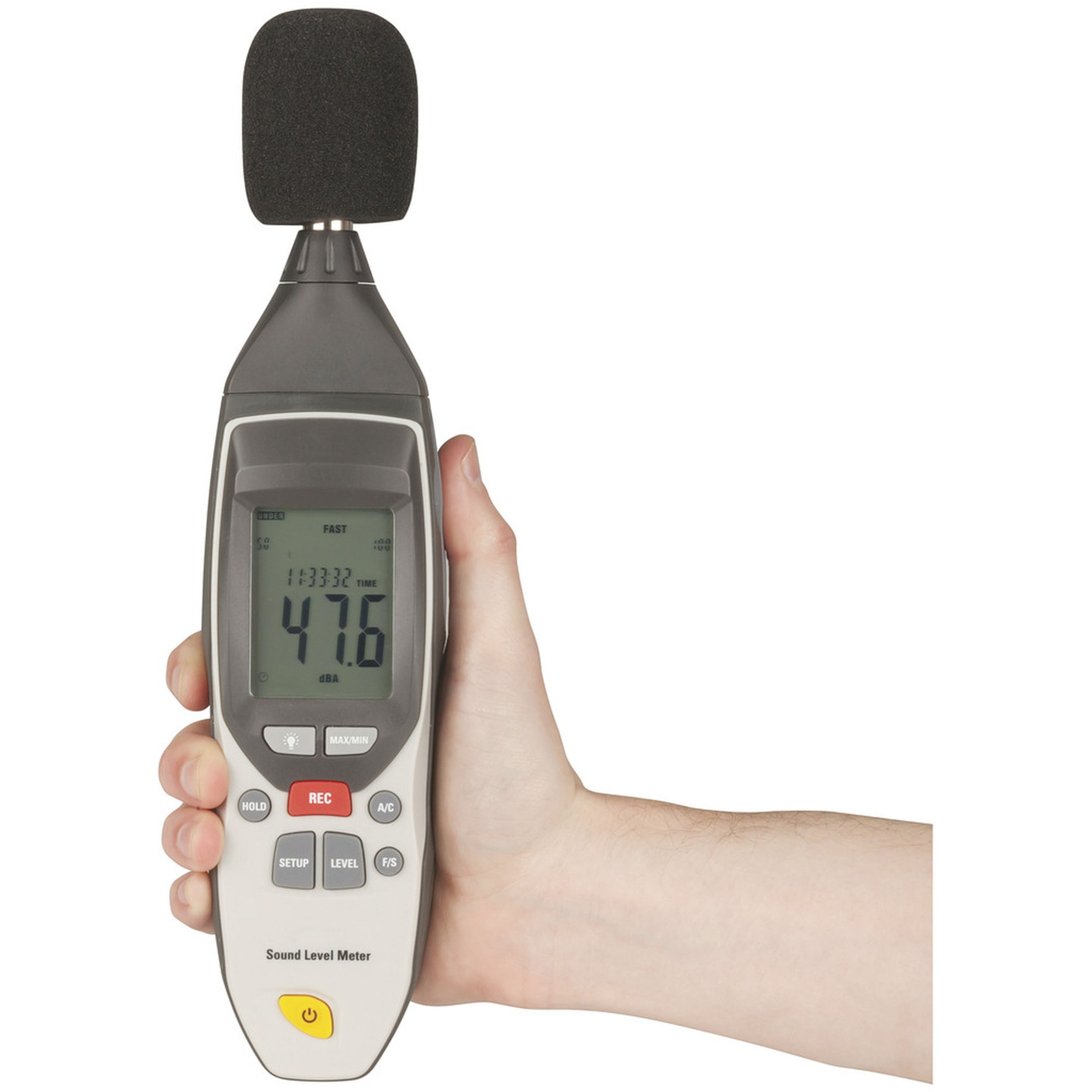

This professional grade sound level meter is designed for all kinds of environmental sound measurement projects. It features a wide dynamic range from 30dB to 130dB, fast (125ms) or slow (1s) time weighting to get an ambient reading or a short noise. minimum, maximum and data hold values, and A & C weightings to get the right response for the human ear. Other features include backlit display with date and time, data logger function, analogue AC/DC outputs for connection to a frequency analyser, and a USB port to connect to your PC for further analysis. Includes an Alarm function which can be set to Over and Under thresholds. Great for car audio installers, clubs and PA.

Features:
- 30dB to 130dB
- MAX & MIN measurements
- Over range display
- Under range display
- A & C Weighting
- FAST (125ms) & SLOW (1s) response
- Data logger
- IEC61672-1CLASS2 Standard
- ±1.4dB Accuracy
- 32700 Memories
- 1/2 inch electret condenser microphone
- 2 times/sec Display Update
- Analogue Output
- USB Connectivity

Level Ranges:
Low: 30dB~80dB
Med: 50dB~100dB
Hi: 80dB~130dB
Auto: 30dB~130dB

Analogue Output:
AC/DC outputs from earphone outlet AC=1Vrms ,DC=10mV/dB

Please note: this does not have a calibration certificate, however you can calibrate it yourself using the process detailed in the manual.

Specifications

Automatic Shut-off
15.0min
Digits Displayed
4.0digit
Display Type
LCD
Battery used for
Main Product
Size / Shape
9V
Type
Alkaline
Battery quantity
1.0pc
Runtime
25.0hr,30.0hr
Sound range
30.0dB-130.0dB
Weighting
A Weighted,C Weighted
Frequency Range
31.5Hz-8.0kHz
Response
Fast: 125ms, Slow: 1s
Dynamic Range
50dB
Resolution
0.1dB
Length
278.0mm
Width
76.0mm
Depth
50.0mm
Weight
350.0g
Packaged Dimensions
29.0cm(Length) x 38.9cm(Width) x 11.0cm(Height)
