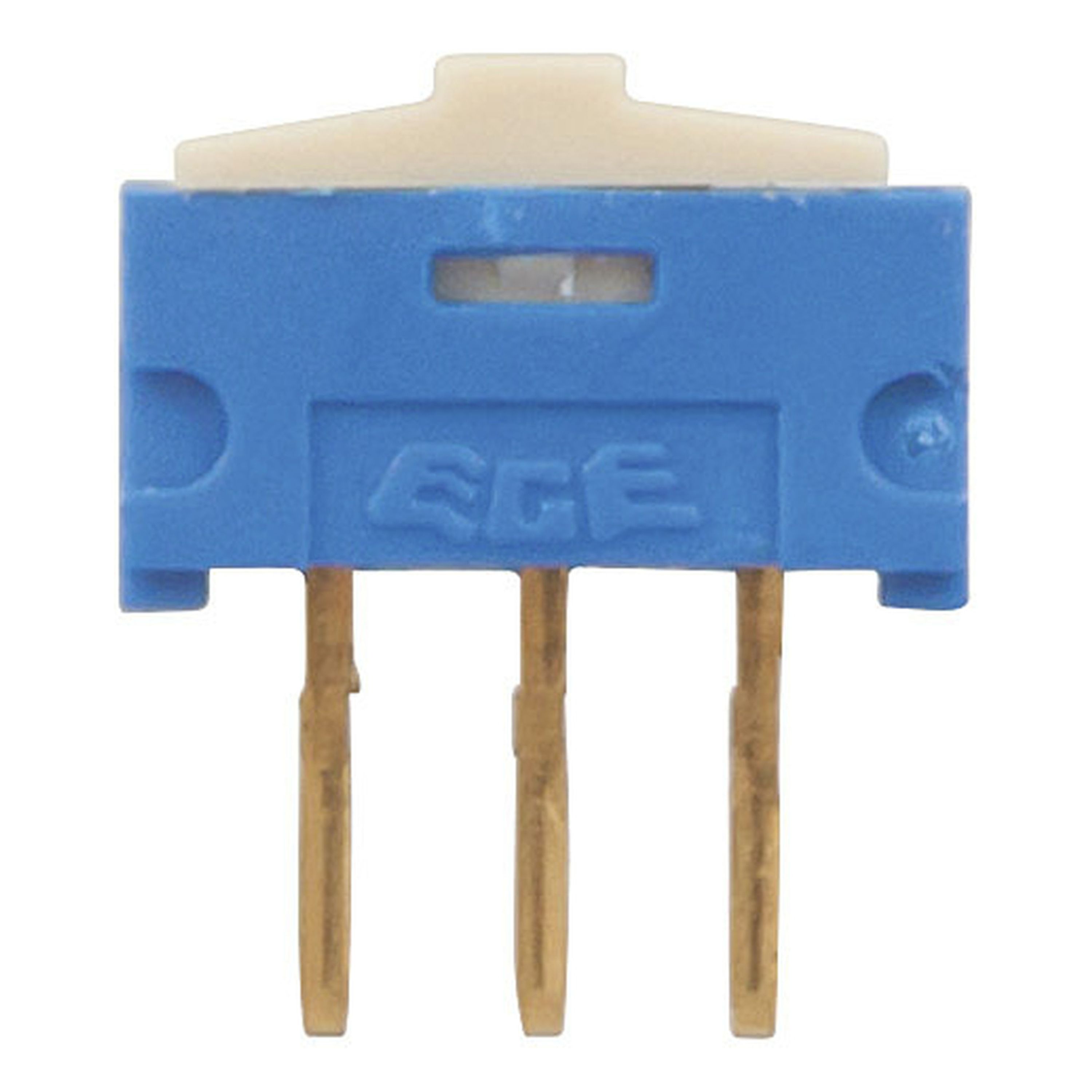

SPDT Micro Slide Switch
- Cat No:
- SS0834
In Stock
$1.95
Description
This is the tiniest slide switch we have ever seen, and we're sure it will be a great addition for all those projects that need a small on-off switch. The 0.1" pitch suits protoboard and even breadboards, and allows multiple switches to be stacked side-by-side if needed. Maximum 0.2A at 24V, 0.5A at 12V.
Specifications
- Switch Type
- Slide
- Poles / Contacts
- 3.0 pole
- Switch Function
- Locking On/Off
- Switch Connection
- PCB Pins
- Pole Throw Type
- SPDT
- DC Voltage
- 24V
- DC Current Rating
- 0.5A
- Width
- 10.0mm
- Height
- 11.5mm
- Depth
- 2.5mm
- Packaged Dimensions
- 0.7cm(Length) x 0.8cm(Width) x 0.3cm(Height)
