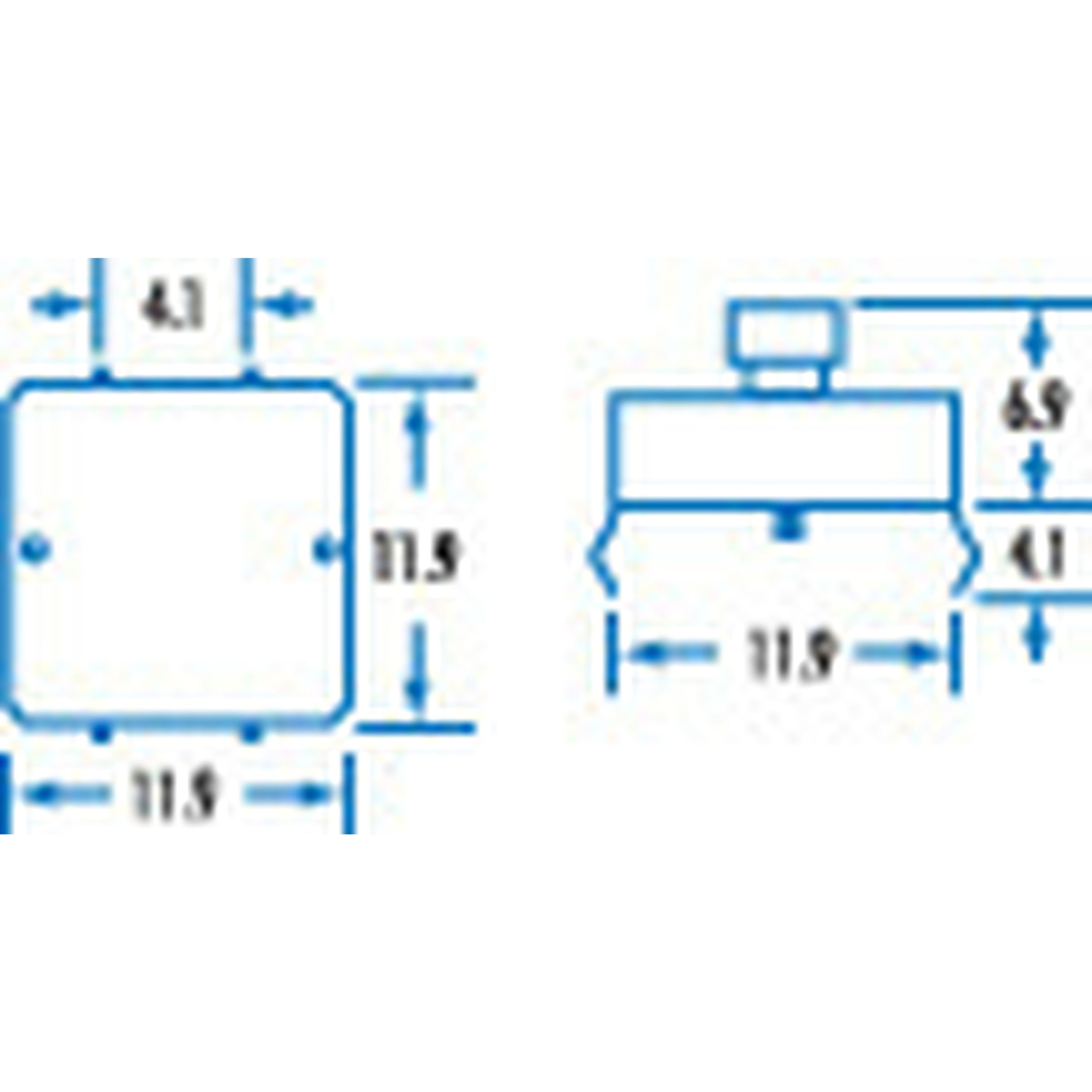

SPST PCB Mount Tactile Switch Square
- Cat No:
- SP0608
In Stock
$1.25
Description
Normally open SPST square micro tactile switch.
Specifications
- Switch Type
- Tactile Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Momentary
- Contact Resistance
- 100.0 mΩ
- Insulation Resistance
- 100.0 MΩ
- Dielectric Strength
- 100.0 V
- Mechanism Material
- Plastic
- Switch Connection
- PCB Pins
- Switch Colour Coded
- Black
- Actuator Height
- 3.3 mm
- Pole Throw Type
- SPST
- Actuator Diameter
- 6.5 mm
- DC Voltage
- 12.0 V
- DC Current Rating
- 50.0 mA
- Switch Type
- Tactile Pushbutton
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Connection
- Solder Legs
- Switch Colour Coded
- Black
- Contact Resistance
- 100.0Ω
- Insulation Resistance
- 100.0MΩ
- Dielectric Strength
- 100.0V
- Mechanism Material
- Plastic
- Actuator Length
- 11.9mm
- Actuator Width
- 11.9mm
- DC Voltage
- 12.0V
- DC current rating
- 50.0A
- Packaged Dimensions
- 1.2cm(Length) x 1.2cm(Width) x 0.8cm(Height)
