Standard Microphone Insert with Pins
- Cat No:
- AM4011
In Stock
$2.95
Description
Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Pin length: 10mm (+/- 0.5mm)
Specifications
- Type
- Electret Insert
- Frequency Response
- 50.0Hz
- Impedence
- 2.2Ω
- Sensitivity
- 68.0dB
- Sensitivity Tolerance
- 3.0%
- Windsock Included
- false

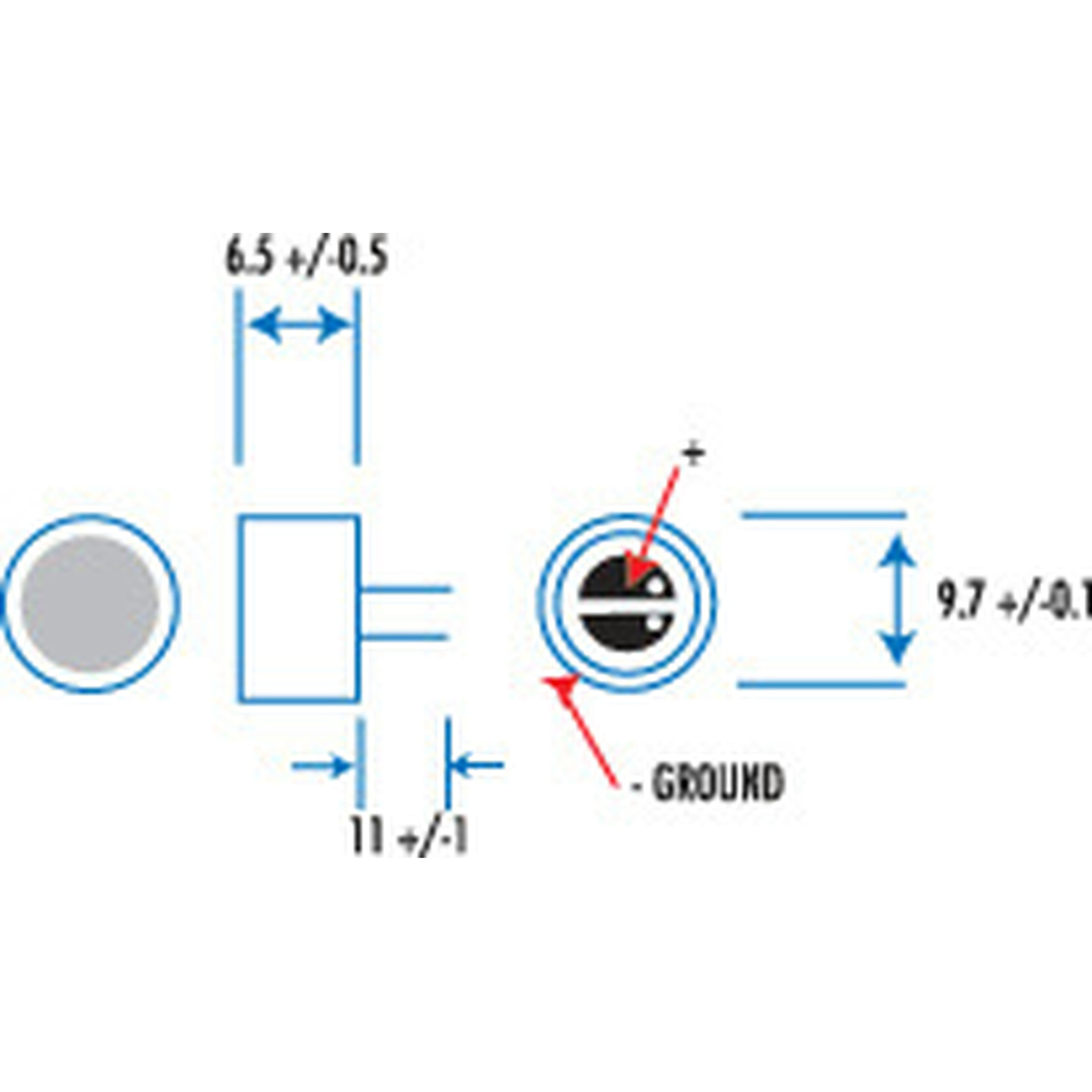

- Height
- 6.7mm
- Diameter
- 9.7mm
- Packaged Dimensions
- 0.9cm(Length) x 0.9cm(Width) x 16.0cm(Height)
