Standard Microphone Insert
- Cat No:
- AM4010
In Stock
$2.95
Description
Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Solder tabs
Specifications
- Type
- Electret Insert
- Insert/Pickup Type
- Electret
- Frequency Response
- 50.0Hz-16.0kHz
- Impedence
- 2.2kΩ
- Sensitivity
- 68.0dB
- Sensitivity Tolerance
- 3.0%
- Windsock Included
- false

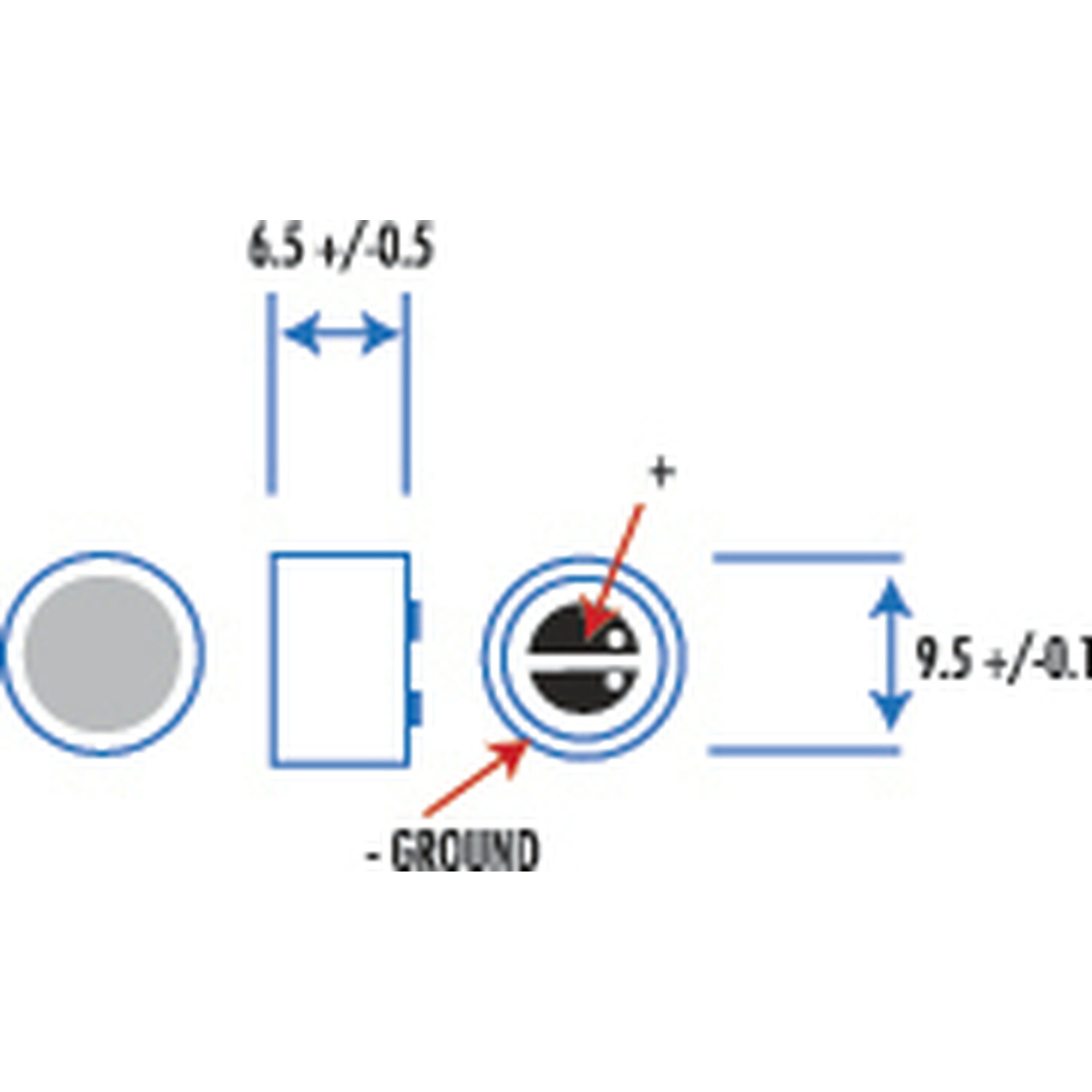

- Height
- 6.7mm
- Diameter
- 9.7mm
- Packaged Dimensions
- 1.0cm(Length) x 1.0cm(Width) x 0.8cm(Height)
