Thermostat 60º C N/C
- Cat No:
- ST3821
In Stock
$6.50
Description
This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metallic element goes open circuit, switching the device off. After the problem has been addressed, device will reset once the breaker detects a targeted lower temperature.
Please reference adjacent specifications tab for further product information.
Specifications
- Type of thermal switch or fuse
- Thermal circuit breaker
- Thermal reset method
- Automatic
- Thermal trip temperature
- 60.0°C
- Thermal reset temp
- 40.0°C
- Normally open or normally closed
- Normally closed
- operating tolerance
- +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
- reset differential
- 10°C - 50°C
- contact endurance
- 32VDC-100mA, 125VAC-10A, 250VAC-6A
- operation cycles
- 50000, 100000, 30000

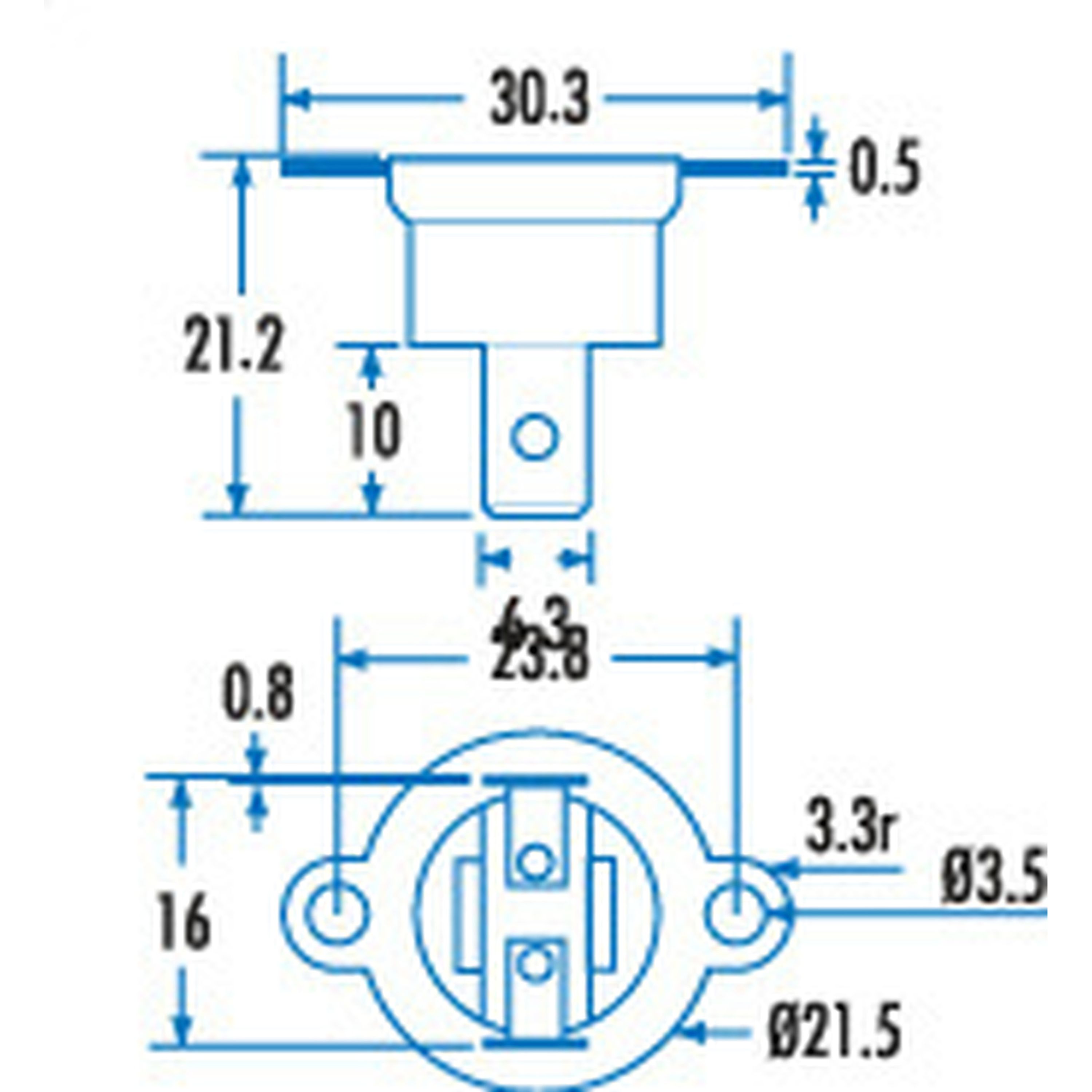

- Height
- 21.2mm
- Diameter
- 30.3mm
- Packaged Dimensions
- 3.0cm(Length) x 2.0cm(Width) x 2.0cm(Height)
